SKU:
PR811677

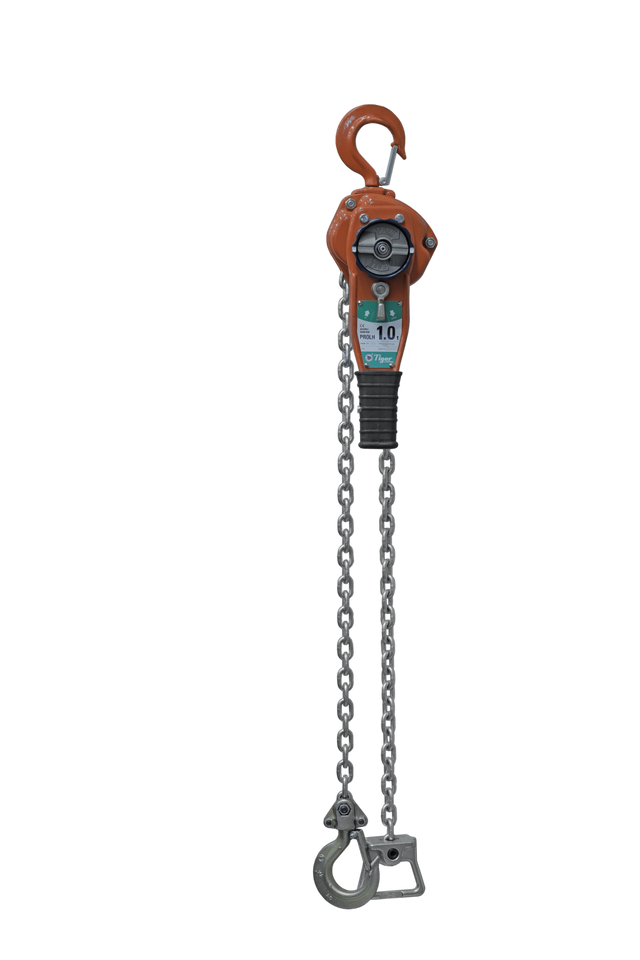

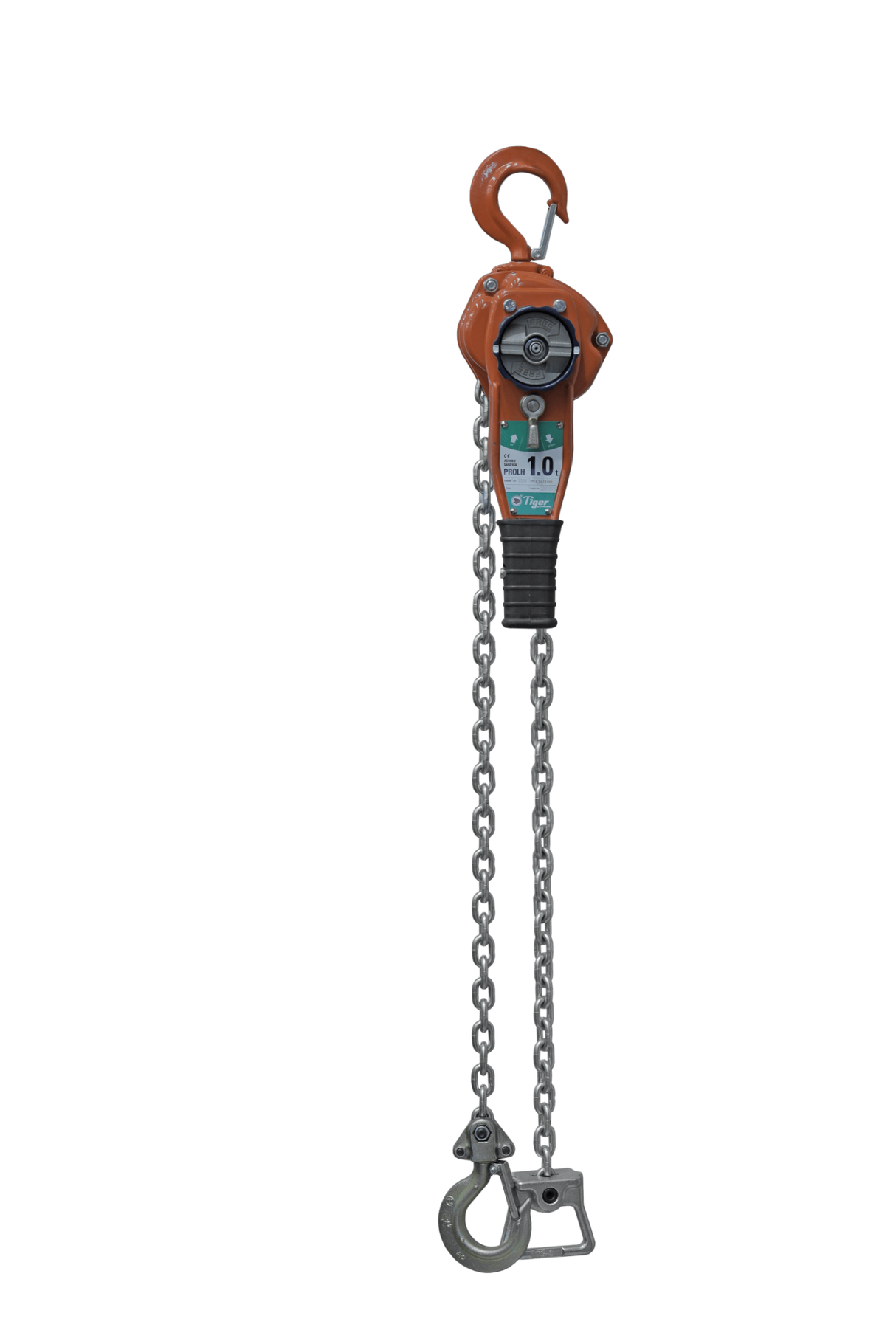

Tiger Lever Block with OLP 1.0T, 1.5m
$2,801.00
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Designed for extreme duty applications where safety is paramount. Fitted with a slipping clutch overload mechanism to protected from overload. When the load limit is exceeded, the clutch in the chain wheel will slip, allowing the hand wheel to be rotated whilst not engaging the gear box. This prevents further lifting of the load, though lowering is still possible. This Tiger Lever Block with overload protection is DNV GL Verification tested according to NORSOK R-002.
Equipped with unique dual brake mechanism
Adaptable to use both inverted and horizontally
Using only the highest quality alloy calibrated load chains according to EN 818-7 and ISO 1687
Patented quad cam pawl assembly for additional safety
Operating temperature range of -40 C to +50 C
Light load tested and certified at 2% of the rated capacity
Suitable for mining, underground, construction, rural and industrial
Complies with AS 1418.2:1997
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity
1.0 tonne
Lifting Height
1.5m
No. of Load Chain Falls
1
Load Chain Diameter
6.3mm
Headroom
295mm
Designed for extreme duty applications where safety is paramount. Fitted with a slipping clutch overload mechanism to protected from overload. When the load limit is exceeded, the clutch in the chain wheel will slip, allowing the hand wheel to be rotated whilst not engaging the gear box. This prevents further lifting of the load, though lowering is still possible. This Tiger Lever Block with overload protection is DNV GL Verification tested according to NORSOK R-002.
Equipped with unique dual brake mechanism
Adaptable to use both inverted and horizontally
Using only the highest quality alloy calibrated load chains according to EN 818-7 and ISO 1687
Patented quad cam pawl assembly for additional safety
Operating temperature range of -40 C to +50 C
Light load tested and certified at 2% of the rated capacity
Suitable for mining, underground, construction, rural and industrial
Complies with AS 1418.2:1997
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity
1.0 tonne
Lifting Height
1.5m
No. of Load Chain Falls
1
Load Chain Diameter
6.3mm
Headroom
295mm
