SKU:
PR811765

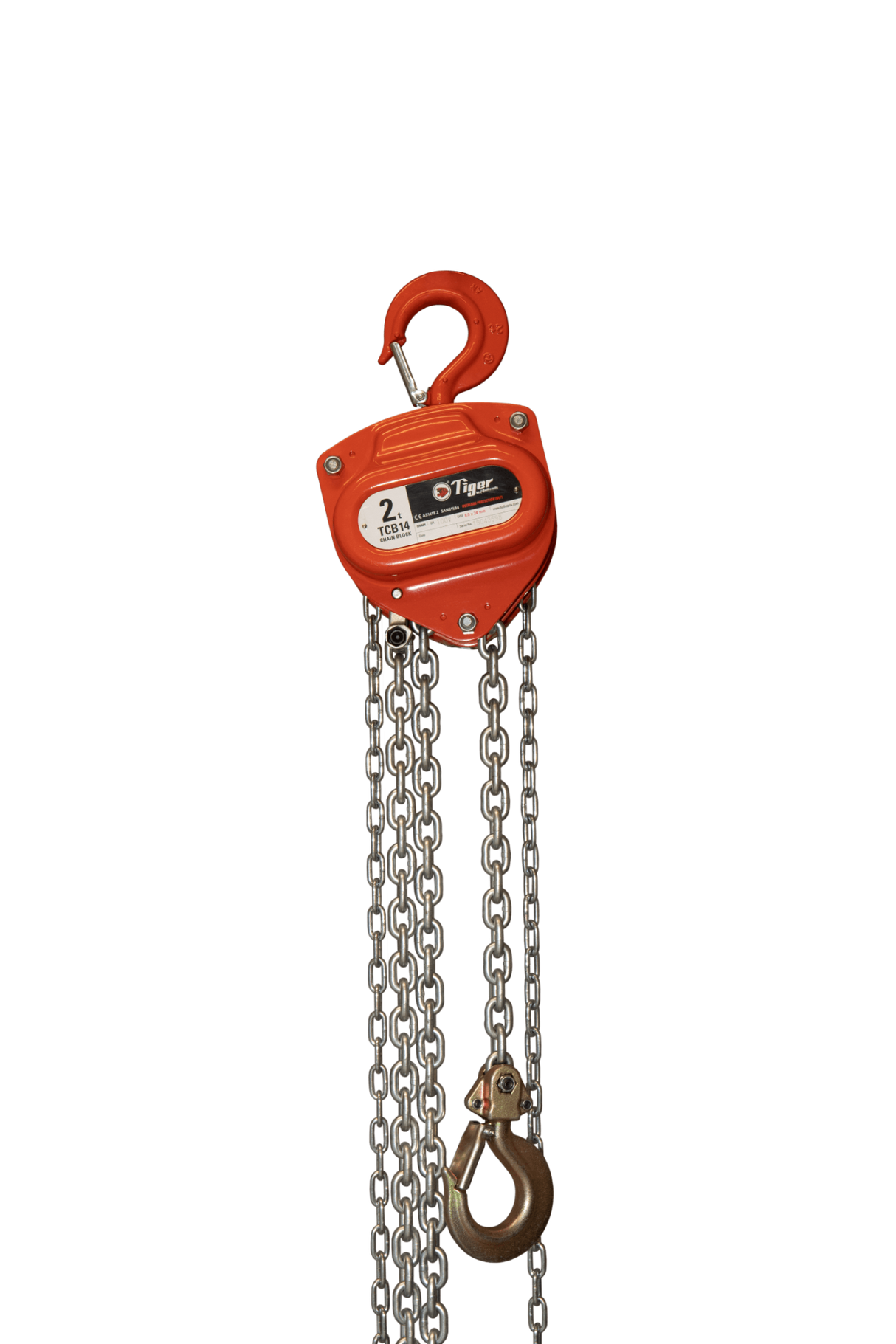

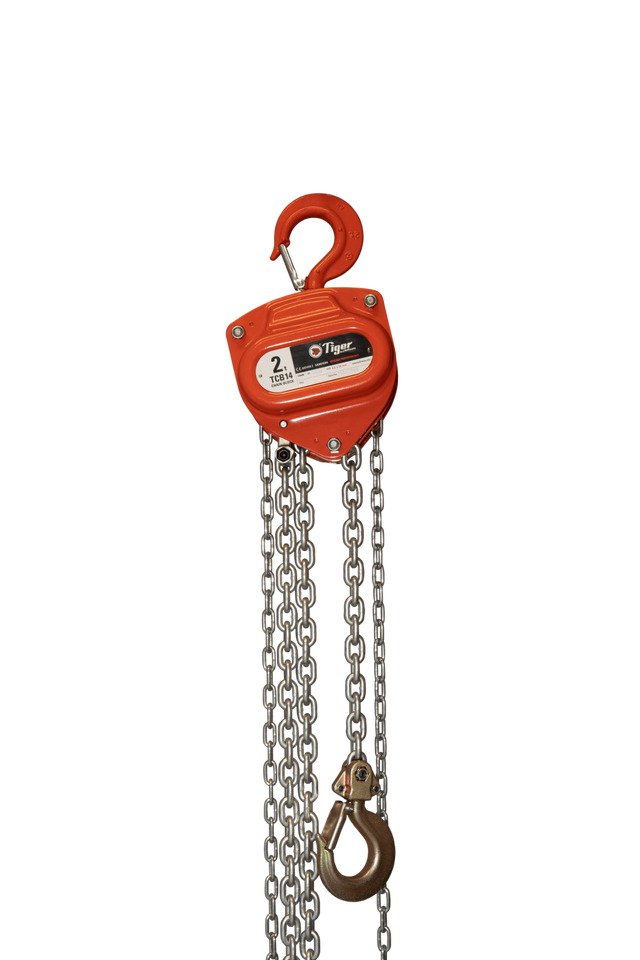

Tiger Chain Block with OLP 2.0T, 3.0m
$3,161.00
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Designed for extreme duty applications where safety is paramount. Fitted with a slipping clutch overload mechanism to protected from overload. When the load limit is exceeded, the clutch in the chain wheel will slip, allowing the hand wheel to be rotated whilst not engaging the gear box. This prevents further lifting of the load, though lowering is still possible. The TCB with overload protection is DNV GL Verification tested according to NORSOK R-002.
Rugged steel body construction
Double cover protection for brake chamber
Drop forged and heat treated alloy hooks
Patented quad cam pawl assembly for additional safety
Certified 2% light load protection
Heat treated alloy steel triple spur gears and pinion shaft
-40 C to +50 C Operating temperature range
Designed for fleeting and cross-hauling applications at angles up to 45 from vertical
Suitable for mining, underground and construction to rural and industrial applications
Complies with AS 1418.2:1997
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity
2.0 tonne
Lifting Height
3m
No. of Load Chain Falls
1
Load Chain Diameter
8.0mm
Hand Chain Length
2.5m
Headroom
420mm
Designed for extreme duty applications where safety is paramount. Fitted with a slipping clutch overload mechanism to protected from overload. When the load limit is exceeded, the clutch in the chain wheel will slip, allowing the hand wheel to be rotated whilst not engaging the gear box. This prevents further lifting of the load, though lowering is still possible. The TCB with overload protection is DNV GL Verification tested according to NORSOK R-002.
Rugged steel body construction
Double cover protection for brake chamber
Drop forged and heat treated alloy hooks
Patented quad cam pawl assembly for additional safety
Certified 2% light load protection
Heat treated alloy steel triple spur gears and pinion shaft
-40 C to +50 C Operating temperature range
Designed for fleeting and cross-hauling applications at angles up to 45 from vertical
Suitable for mining, underground and construction to rural and industrial applications
Complies with AS 1418.2:1997
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity
2.0 tonne
Lifting Height
3m
No. of Load Chain Falls
1
Load Chain Diameter
8.0mm
Hand Chain Length
2.5m
Headroom
420mm
