SKU:
PR1160367
Thru-Bolt Stud Anchor M16 x - SESTO 190mm Galvanised
$26.10
Unit price
/
Unavailable
Thru-Bolt Stud Anchor M16 x - SESTO 190mm Galvanised is backordered and will ship as soon as it is back in stock.

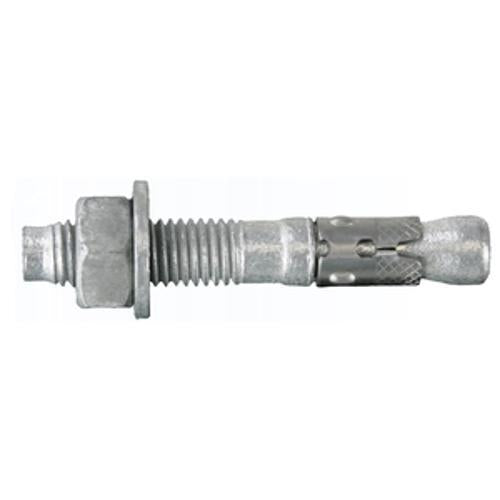

Thru-Bolt Stud Anchor M16 x 190mm Galvanised
Description
The Thru-Bolt Stud Anchor is suitable for anchoring into concrete. It features Class 5.8 carbon steel construction and galvanised finish for excellent corrosion resistance. This anchor measures 16mm diameter x 190mm. It withstands tensile strength of 17.3kN at 40MPa and shear strength of 16.3kN at 40MPa. Anchor has maximum fixture thickness of 70mm. Anchor has maximum fixture thickness of 25mm. The engineered clip design makes it ideal for high loads while preventing anchor rotation. Thru fixing ensures fast and easy installation.
Features & Benefits
Torque controlled high performance anchor
Engineered clip for optimum expansion and anti-rotation
Red ETA embedment depth mark providing ease of installation on site
ETA assessed ďż˝ ETA 20/0914
Uncracked and cracked concrete assessed
AS 5216 compliant
Identification code on bolt head for easy traceability
C1 Seismic rated
Brand: SESTO
Description
The Thru-Bolt Stud Anchor is suitable for anchoring into concrete. It features Class 5.8 carbon steel construction and galvanised finish for excellent corrosion resistance. This anchor measures 16mm diameter x 190mm. It withstands tensile strength of 17.3kN at 40MPa and shear strength of 16.3kN at 40MPa. Anchor has maximum fixture thickness of 70mm. Anchor has maximum fixture thickness of 25mm. The engineered clip design makes it ideal for high loads while preventing anchor rotation. Thru fixing ensures fast and easy installation.
Features & Benefits
Torque controlled high performance anchor
Engineered clip for optimum expansion and anti-rotation
Red ETA embedment depth mark providing ease of installation on site
ETA assessed ďż˝ ETA 20/0914
Uncracked and cracked concrete assessed
AS 5216 compliant
Identification code on bolt head for easy traceability
C1 Seismic rated
Brand: SESTO
