SKU:
PR703010
Slip-on Stainless Steel 316 Pipe Flange Table D/E 32mm
$141.00
Unit price
/
Unavailable

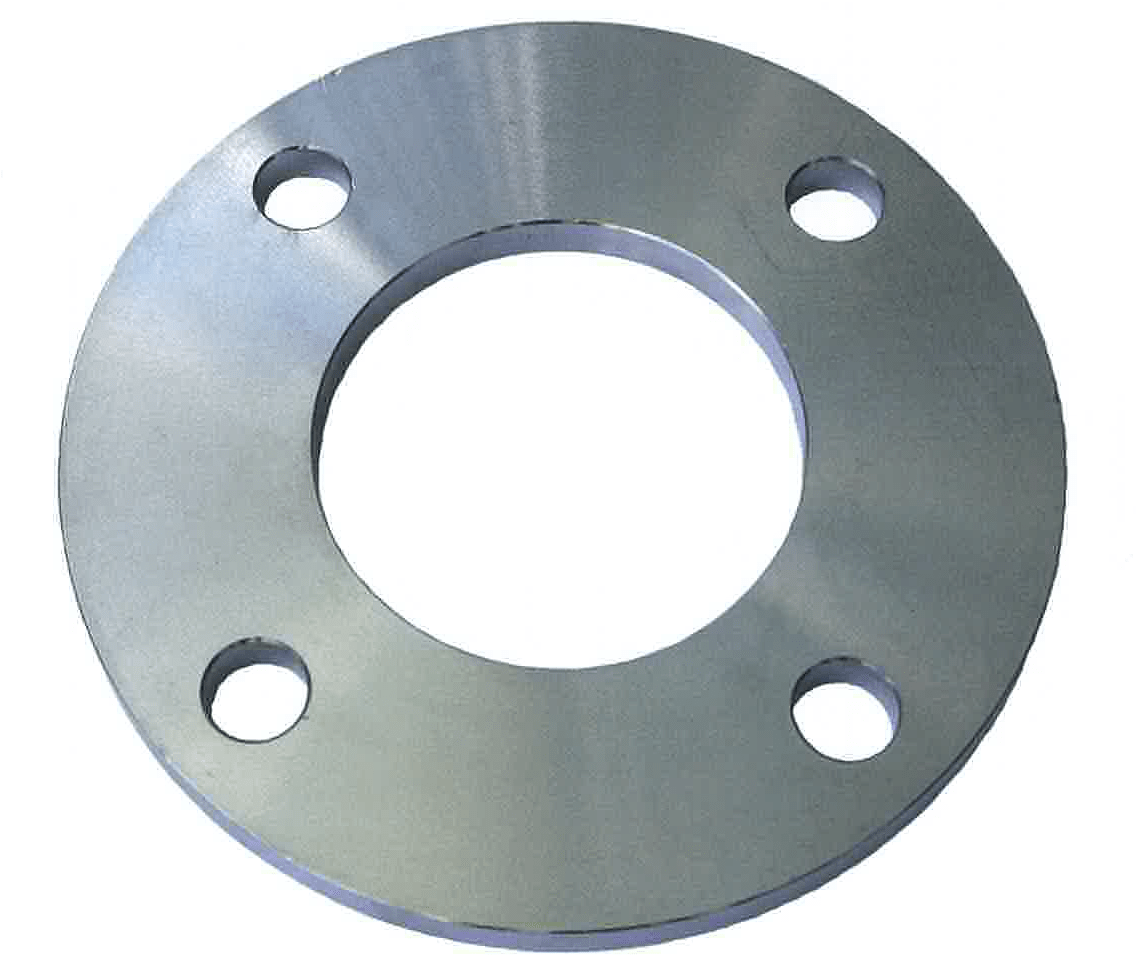

Slip-on Stainless Steel 316 Pipe Flange Table D/E 32mm
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Slip on flange, weldable both sides
Material - Stainless Steel 316
Specification - AS2129
Heat number traceable
Lower pressure applications
TECHNICAL SPECIFICATIONS
Pipe Size
32mm
Outer Diameter (A)
120mm
Circle Diameter (B)
87mm
Thickness (C)
10.6mm
Bolt Size
M12
No. Holes
4
Approx. Kg/pc
0.6kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Slip on flange, weldable both sides
Material - Stainless Steel 316
Specification - AS2129
Heat number traceable
Lower pressure applications
TECHNICAL SPECIFICATIONS
Pipe Size
32mm
Outer Diameter (A)
120mm
Circle Diameter (B)
87mm
Thickness (C)
10.6mm
Bolt Size
M12
No. Holes
4
Approx. Kg/pc
0.6kg
