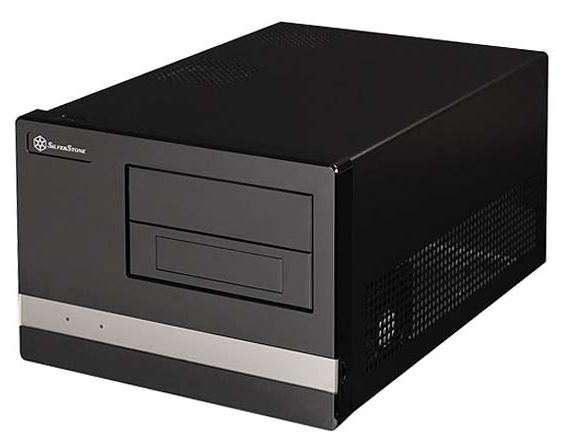

SilverStone SG02B-F Sugo mATX Black Cube SFF Case 23L

The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact.

Although SG02F’s front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.
FEATURES:
ABS & Acrylic Front Panel, SECC Body
Micro-ATX Compatible
2x 3.5" Internal Drive Bays
2x 5.25" External Drive Bays
1x 80mm Fan Slot (Rear), 1x 80mm Fan (Side), 1x 80mm Fan Slot (Top)
4x Expansion Slots
Card: Up to 14.5" in length, 4.46" Width
270mm (w) x 393mm (d) x 212mm (h)

Warranty: 12 Month Return to Base Warranty

Specifications:
Material ABS & Acrylic Front Panel, SECC Body
Motherboard Micro-ATX
Drive Bays External:
2x 5.25"
1x 3.5" Converter

Internal:
2x 3.5"
Cooling System Front:
N/A

Rear:
1x 80mm Fan Slot, Optional Cross-Flow Fan

Side:
1x 80mm Intake Fan 2050rpm

Top:
1x 80mm Fan Slot

Bottom:
N/A

Internal:
N/A
Expansion Slots 4
Front I/O Port 2x USB 2.0
1x 3.5mm Audio Port
1x 3.5mm Microphone Port
Power Supply Optional PS2(ATX)
Expansion Card Full Size Long Cards Capable (14.5”),
Width Restriction 4.46"
Limitation of CPU Cooler 82mm
Limitation of PSU PSU + Optical Drive/5.25” Device = 370mm
Litreage 22.5L
Dimensions (mm) 270 (w) x 393 (d) x 212 (h)
Weight Approx. 4.1kg
