SKU:
PR1046274

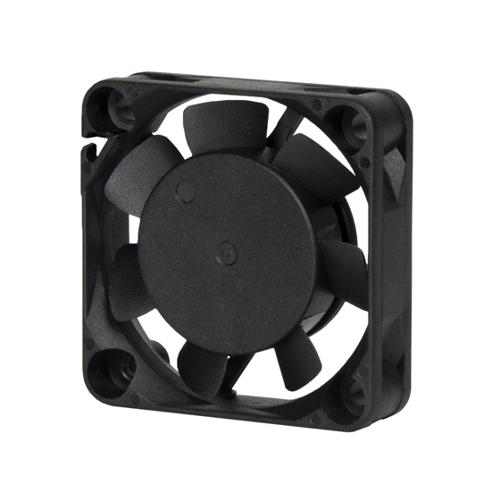

SilverStone FTF 4010 40mm Tiny Form Factor Fan
$39.70
Unit price
/
Unavailable
Ideal small electronic equipment fans
Optimized for airflow and pressure performance with low noise operation
Dual ball bearing for improved life expectancy
Material
PBT
Colour
Black
Bearing
Dual ball bearing
Connectors
4 pin PWM & 2+1 pin
Rated Voltage
12V
Starting Voltage
4.5V
Rated Current
0.07 ±0.01A
Rated Power
0.84W
Speed
PWM: 0 – 7,000 RPM ±10% 12V: 7,000 RPM ±10% Speed reduction cable: 5,900 RPM ±10% 5V: 2,600 RPM ±10%
Airflow
12V: 6.04 CFM Speed reduction cable: 5.2 CFM 5V: 1.81 CFM
Static Pressure
12V: 3.87 mmH2O Speed reduction cable: 2.95 mmH2O 5V: 0.62 mmH2O
Noise Level
12V: 23.9 dBA Speed reduction cable: 19.8 dBA 5V: 15.6 dBA
Dimension
40mm (W) x 10mm (H) x 40mm (D)
Weight
14.5g
Optimized for airflow and pressure performance with low noise operation
Dual ball bearing for improved life expectancy
Material
PBT
Colour
Black
Bearing
Dual ball bearing
Connectors
4 pin PWM & 2+1 pin
Rated Voltage
12V
Starting Voltage
4.5V
Rated Current
0.07 ±0.01A
Rated Power
0.84W
Speed
PWM: 0 – 7,000 RPM ±10% 12V: 7,000 RPM ±10% Speed reduction cable: 5,900 RPM ±10% 5V: 2,600 RPM ±10%
Airflow
12V: 6.04 CFM Speed reduction cable: 5.2 CFM 5V: 1.81 CFM
Static Pressure
12V: 3.87 mmH2O Speed reduction cable: 2.95 mmH2O 5V: 0.62 mmH2O
Noise Level
12V: 23.9 dBA Speed reduction cable: 19.8 dBA 5V: 15.6 dBA
Dimension
40mm (W) x 10mm (H) x 40mm (D)
Weight
14.5g
