SKU:
PR812005

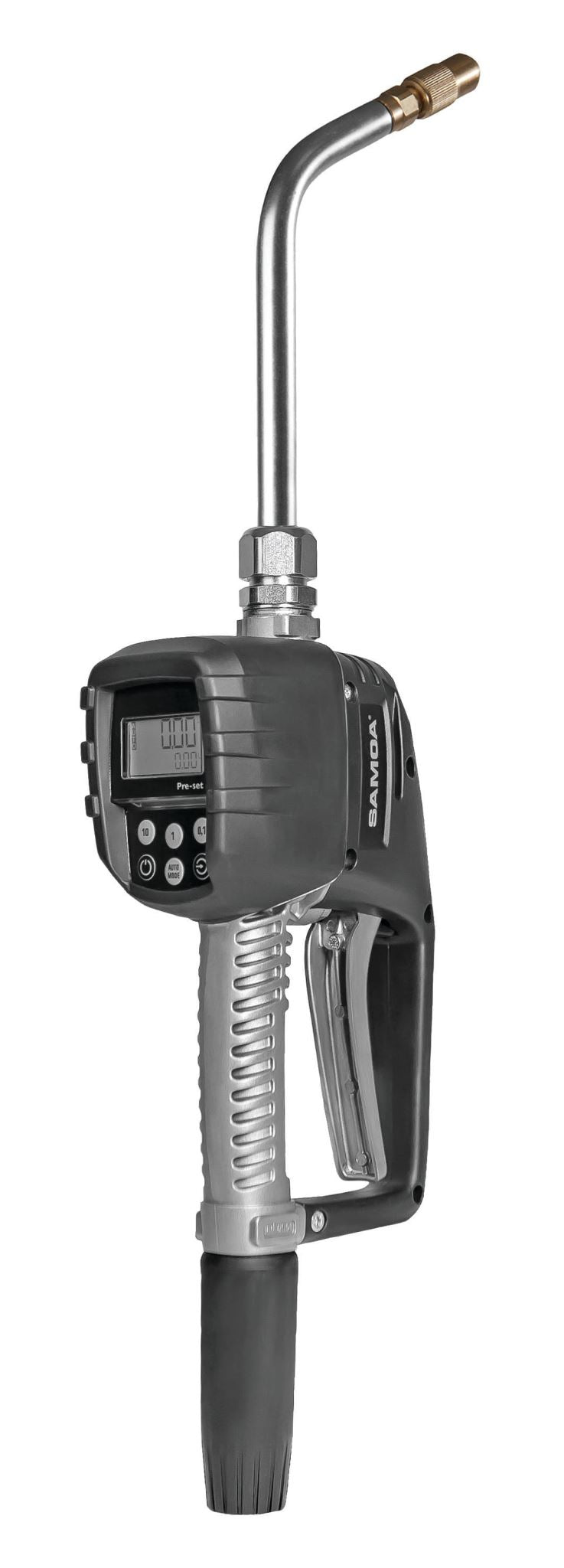

Samoa Electronic Preset Metered Oil Control Valve
$5,129.00
Unit price
/
Unavailable
Samoa Electronic Preset Metered Oil Control Valve is backordered and will ship as soon as it is back in stock.
With flow rates of up to 30 litres per minute and a maximum working pressure of 1,425psi (100 bar), no calibration is required. The new pressure balanced spool valve is designed for unrestricted flow, superb control and comfortable use.
Flow range of up to 30L/min
Maximum working pressure of 1425psi (100 bar)
Units of measure Litres, Gallons, Quarts, Pints
Accuracy / Repeatability ±0.5 %
Inlet 1/2" BSP (F)
Outlet 1/2" BSP (F)
Maximum totaliser 999999 units
Maximum recorded dispense 999.9 units
Working temperature range -10°C to +50°C
Batteries 4 x AA alkaline
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Weight
2.1kg
Mfr No
365316
Flow range of up to 30L/min
Maximum working pressure of 1425psi (100 bar)
Units of measure Litres, Gallons, Quarts, Pints
Accuracy / Repeatability ±0.5 %
Inlet 1/2" BSP (F)
Outlet 1/2" BSP (F)
Maximum totaliser 999999 units
Maximum recorded dispense 999.9 units
Working temperature range -10°C to +50°C
Batteries 4 x AA alkaline
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Weight
2.1kg
Mfr No
365316
