SKU:
PR375368

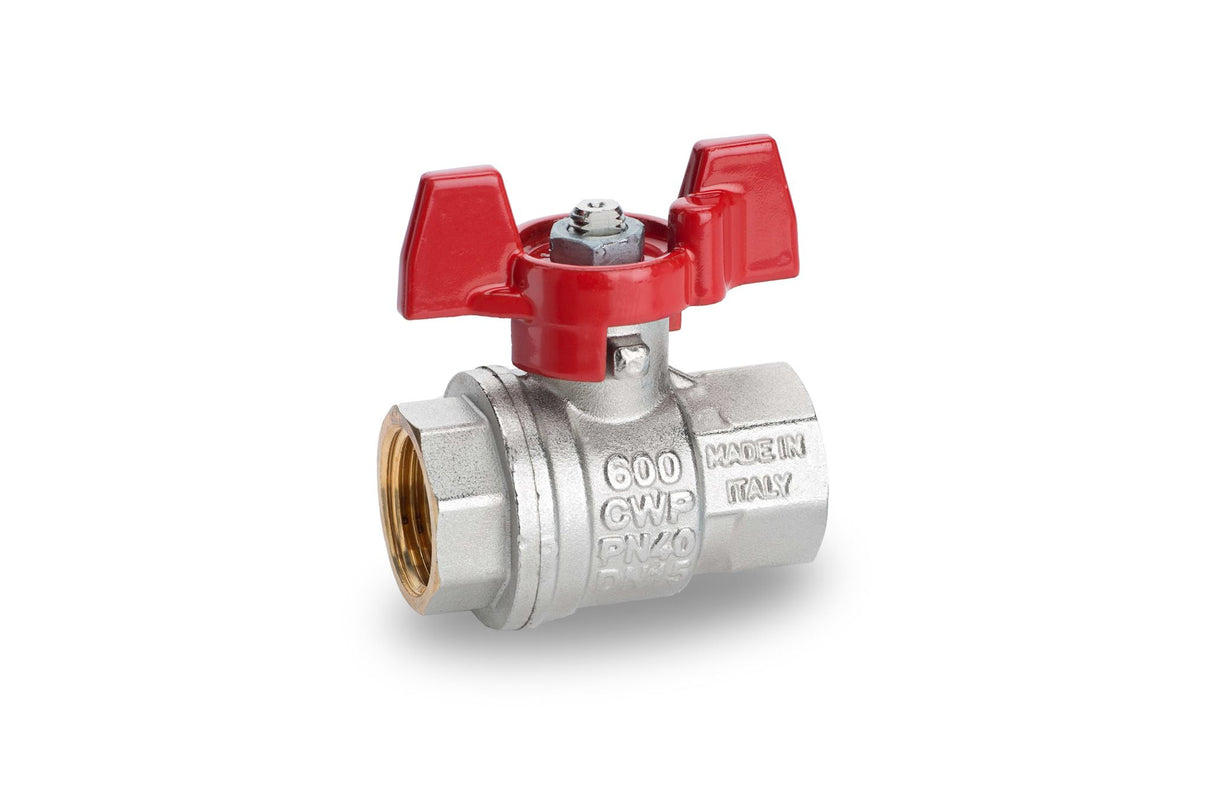

RuB s.90 Brass Ball Valve with T-handle 20mm BSPP
$54.94
Unit price
/
Unavailable
Introducing the RuB s.90 Brass Ball Valve with T-handle, a top-tier solution for fluid control in a variety of industrial applications. Designed with precision and efficiency in mind, this 20mm BSPP ball valve features a dual sealing system that allows for bidirectional flow control, making installation straightforward and hassle-free. Crafted from high-quality brass in accordance with EN 12165 and EN 12164 specifications, this valve assures long-lasting durability and resistance to corrosion.
The innovative blowout-proof nickel-plated brass stem enhances safety and reliability, while the maintenance-free double FPM O-rings provide additional protection at the stem. Enjoy peace of mind with self-lubricating PTFE seats featuring a flexible-lip design, allowing smooth operation and an excellent seal.
With ISO 228 parallel female by female threads, this valve is compatible with a wide range of piping systems. The full port design adhering to DIN 3357 ensures maximum flow efficiency, ensuring your systems operate at optimal performance. The ergonomically designed aluminum T-handle not only ensures easy operation but also clearly indicates the ball position for user convenience.
Ideal for high-pressure applications, the RuB s.90 Brass Ball Valve operates under a working pressure of 40 bar (600 psi) and can withstand temperatures ranging from -40°C to +170°C (-40°F to +350°F). Whether you're a professional plumber, a contractor, or managing an industrial facility, this ball valve is engineered to meet your flow control needs effectively. Upgrade your fluid handling system with the RuB s.90 Brass Ball Valve today!
Ball valves are commonly used in a wide range of industrial applications for controlling the flow of fluids.
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
T-handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
ISO 228 parallel female by female threads
Full port to DIN 3357 for maximum flow
Aluminum T-handle
TECHNICAL SPECIFICATIONS
Mfr No. S90E16
Size 20mm (3/4")
Thread Female x Female BSPP
Handle Type T-handle
Working Pressure (non-shock cold) 40 bar (600 psi)
Temperature Range -40C to +170C (-40F to +350F)
The innovative blowout-proof nickel-plated brass stem enhances safety and reliability, while the maintenance-free double FPM O-rings provide additional protection at the stem. Enjoy peace of mind with self-lubricating PTFE seats featuring a flexible-lip design, allowing smooth operation and an excellent seal.
With ISO 228 parallel female by female threads, this valve is compatible with a wide range of piping systems. The full port design adhering to DIN 3357 ensures maximum flow efficiency, ensuring your systems operate at optimal performance. The ergonomically designed aluminum T-handle not only ensures easy operation but also clearly indicates the ball position for user convenience.
Ideal for high-pressure applications, the RuB s.90 Brass Ball Valve operates under a working pressure of 40 bar (600 psi) and can withstand temperatures ranging from -40°C to +170°C (-40°F to +350°F). Whether you're a professional plumber, a contractor, or managing an industrial facility, this ball valve is engineered to meet your flow control needs effectively. Upgrade your fluid handling system with the RuB s.90 Brass Ball Valve today!
Ball valves are commonly used in a wide range of industrial applications for controlling the flow of fluids.
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
T-handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
ISO 228 parallel female by female threads
Full port to DIN 3357 for maximum flow
Aluminum T-handle
TECHNICAL SPECIFICATIONS
Mfr No. S90E16
Size 20mm (3/4")
Thread Female x Female BSPP
Handle Type T-handle
Working Pressure (non-shock cold) 40 bar (600 psi)
Temperature Range -40C to +170C (-40F to +350F)
