SKU:
PR705953

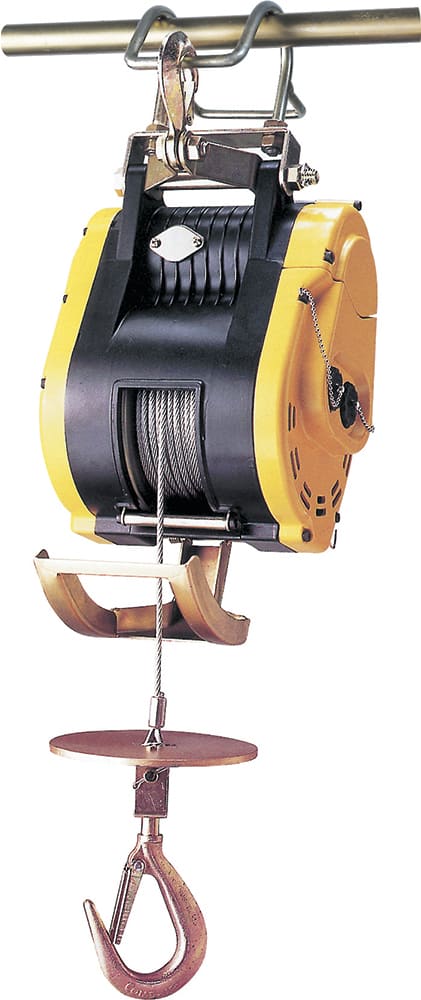

Pacific Electric Wire Rope Hoist 160kg
$4,746.00
Unit price
/
Unavailable
This Pacific Electric Wire Rope Hoist is suited for a wide range of applications such as warehouses, construction sites and factories. Due to its compact and lightweight design, it is perfect for when easy installation and quick use is needed.
Automatic upper limit switch; when rope disc touches the limit arm, hoisting is automatically stopped.
Dynamic and mechanical brake providing instant and safe braking.
Convenient 240V / single phase power supply.
Sensor arm automatically activates lower limit switch to stop motor if rope is under wound.
Supplied with 3m power lead and industry plug & 10m heavy duty IP65 waterproof pendant control.
Wire rope with 360 weighted hook with safety latch.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity (kg)
160
Speed (m/min / 50 Hz)
22
Motor Output (kW)
1.2
Power Supply
240V 1 50Hz
Max. Height of Lift (m)
40
Wire Rope Dimension ( mmxm)
4.0 x 41
Net Weight (kg)
25
Mfr No
CWS160
Automatic upper limit switch; when rope disc touches the limit arm, hoisting is automatically stopped.
Dynamic and mechanical brake providing instant and safe braking.
Convenient 240V / single phase power supply.
Sensor arm automatically activates lower limit switch to stop motor if rope is under wound.
Supplied with 3m power lead and industry plug & 10m heavy duty IP65 waterproof pendant control.
Wire rope with 360 weighted hook with safety latch.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Rated Capacity (kg)
160
Speed (m/min / 50 Hz)
22
Motor Output (kW)
1.2
Power Supply
240V 1 50Hz
Max. Height of Lift (m)
40
Wire Rope Dimension ( mmxm)
4.0 x 41
Net Weight (kg)
25
Mfr No
CWS160
