CEJN eSafe 300 Nipple Hosetail 6.3mm (Each)

CEJN eSafe 300 Series safety fittings offer high flow and require only a low connection force, which ensures a safe working environment. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. A fully automatic operation ensures quick and easy handling.
Compatible with Series 300, ARO 210 Standard, and 5.5mm couplings
Suitable for compressed air and neutral gas
Compact multiple outlets
Ready made units, no assembly required
Vented safety function to reduce noise and prevent recoil accidents

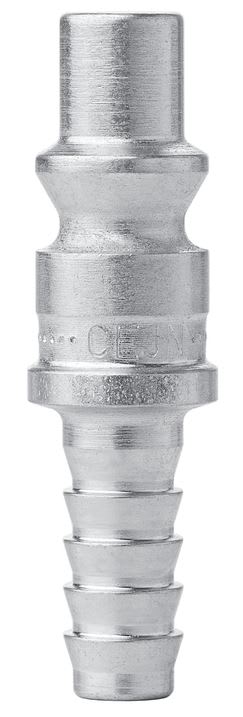

Image for representation purposes only, actual product may differ

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
10 300 5002
Connection Type
Hosetail
Connection Size
6.3mm (1/4")
Material
Hardened Zinc-Plated Steel
Air Flow
1050 l/min (37.1 CFM)
Max. Working Pressure
16 Bar (232 PSI)
Min. Burst Pressure
140 Bar (2030 PSI)
Temperature Range
-20 C - +100 C (-4 F - +212 F)
Nominal Flow Diameter
5.5mm (7/32")
Connection Force
86N
