SKU:
PR375267

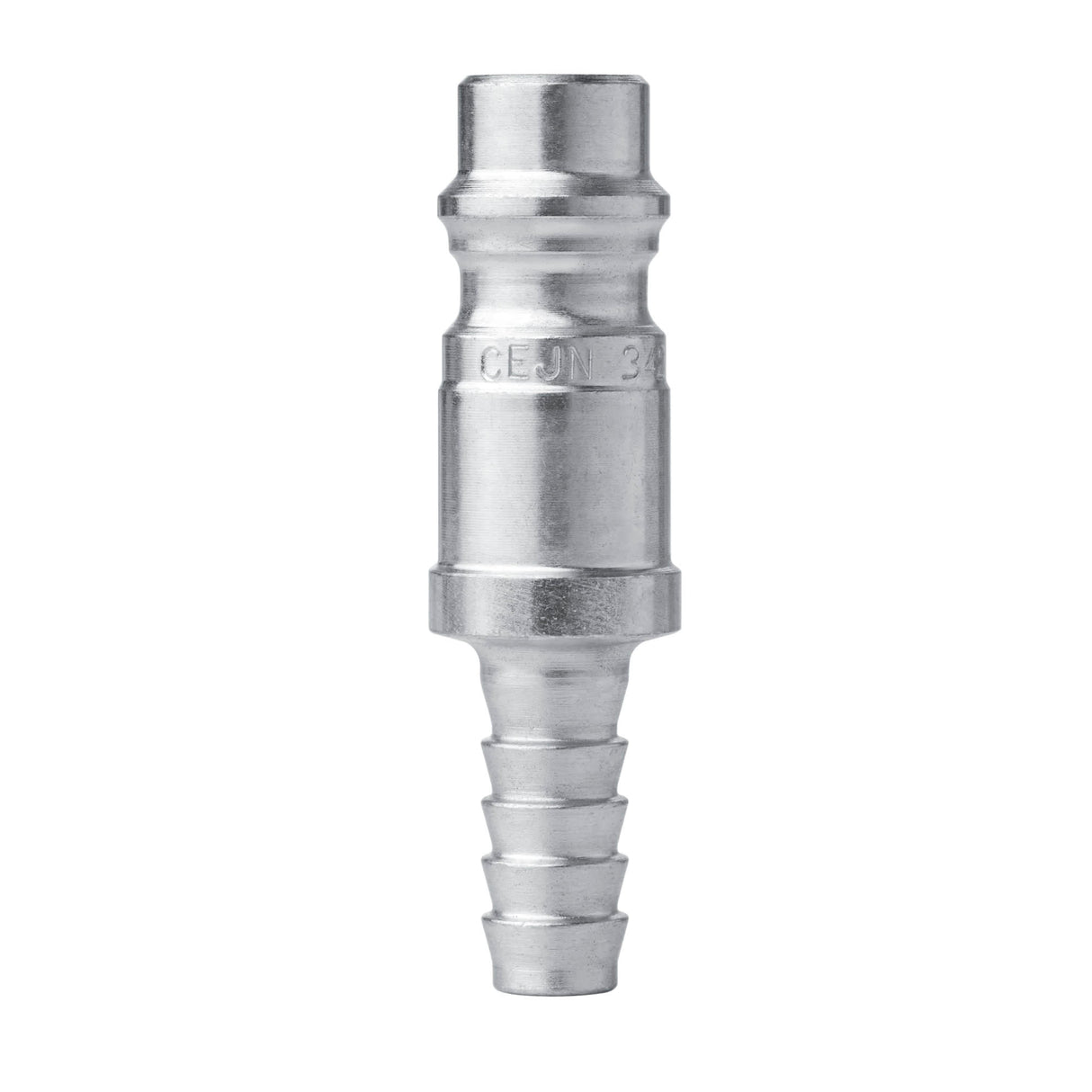

CEJN Breathing Air 342 Nipple Hosetail 10mm (Each)
$40.00
Unit price
/
Unavailable
CEJN Breathing Air 342 Series fittings have a high-flow rate, a broad connection range and require only minimal force to connect. They are well-suited for breathing air applications in demanding industrial environments.
Compatible with Series 341, Series 342, Series 344, Series 345, and Series 346 couplings
Automatic safety-locking feature
Extremely high flow capacity
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
10 342 5004
Connection Type
Hosetail
Connection Size
10mm (3/8")
Material
Hardened Steel
Seal Material
NBR
Air Flow
1950 l/min (69.0 CFM)
Max. Working Pressure
35 Bar (508 PSI)
Min. Burst Pressure
140 Bar (2030 PSI)
Temperature Range
-30 C to +100 C (-22 F to +212 F)
Nominal Flow Diameter
7.4mm (9/32")
Compatible with Series 341, Series 342, Series 344, Series 345, and Series 346 couplings
Automatic safety-locking feature
Extremely high flow capacity
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
10 342 5004
Connection Type
Hosetail
Connection Size
10mm (3/8")
Material
Hardened Steel
Seal Material
NBR
Air Flow
1950 l/min (69.0 CFM)
Max. Working Pressure
35 Bar (508 PSI)
Min. Burst Pressure
140 Bar (2030 PSI)
Temperature Range
-30 C to +100 C (-22 F to +212 F)
Nominal Flow Diameter
7.4mm (9/32")
