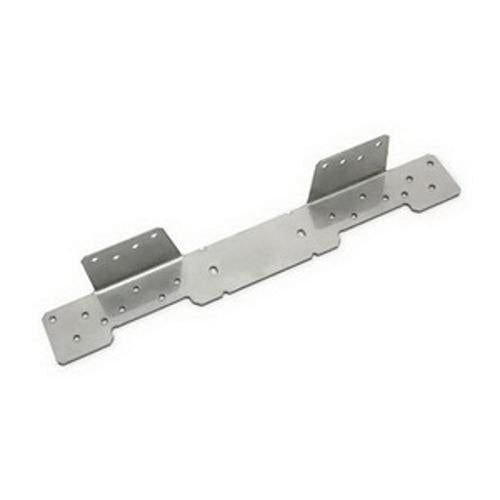

LSC Adjustable Stair-Stringer Connector 280 x 40 x 40mm Stainless Steel Each

LSC Adjustable Stair-Stringer Connector 280 x 40 x 40 mm Stainless Steel Each LSCSS

Description
The Stringer Connector is designed to use for interior and exterior applications. The LSC adjustable stair ensures a concealed connection between the stair stringer and the carrying header. This LSC connector makes it ideal to use for solid or notched stringers. It facilitates flush mounting at the top of the carrying member on the face and is an ideal replacement for framing and toe nailing. Connector measuring 280 mm x 40 mm x 40 mm is made from stainless steel for added strength. ZMAX coating prevents corrosion and gives an attractive look.
Features & Benefits
Suitable to use for interior or exterior applications
Replaces additional framing and toe nailing
May be installed flush with the top of the carrying member or lower on the face
Interchangeable for left or right applications
LSCZ features a ZMAX coating for additional corrosion protection
Suitable for interior and some exterior applications
Before fastening, position the stair stringer with the LSC on the carrying member to verify where the bend should be locate
Tabs on the LSC must be positioned to the inside of the stairs
The fastener that is installed into the bottom edge of the stringer must go into the second-to-last hole

Brand: Simpson Strong-Tie
