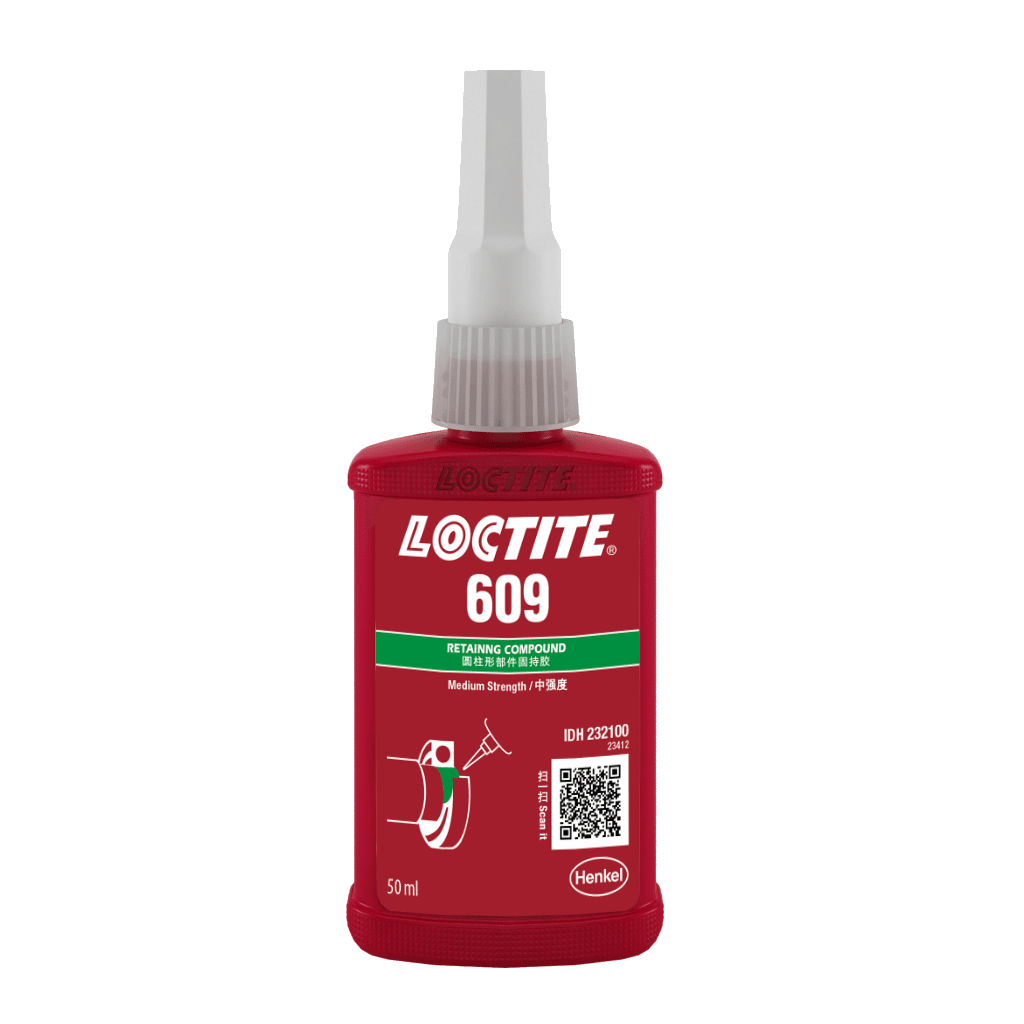

LOCTITE 609 Retaining Compound General Purpose - 50ml (Each)

Discover LOCTITE 609 Retaining Compound, a high-strength, green methacrylate ester acrylic solution specifically designed for bonding cylindrical parts. Ideal for various applications, it excels in securing metal assemblies where a robust bond is essential. This versatile product cures in the absence of air, making it perfect for close-fitted metal surfaces. Suitable for rotor-to-shaft connections in fractional and subfractional horsepower motors, LOCTITE 609 also locks bushings and sleeves within housings, reducing the risk of fretting corrosion and ensuring excellent load transmission and chemical resistance. Enhance your press fits efficiently with a low viscosity formula that evenly distributes loads and stresses, offering a reliable solution for your retaining needs. When dismantling, LOCTITE 609 can be easily removed with a press. For optimal performance, consider using LOCTITE 7649 or LOCTITE 7471 as a primer, and LOCTITE SF 7063 for cleaning and surface preparation. The compound features a cure temperature range of -55°C to +150°C and delivers a shear strength of 2300 psi on grit blasted steel. Experience the reliability of LOCTITE 609 at Smartfox NZ, your go-to destination for high-quality adhesives and bonding solutions.

LOCTITE 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close fitting metal surfaces.
Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts
Prevents fretting corossion, offers excellent load transmissions and chemical resistance
Augments press fits
Dismantles with press
Evenly distributes loads and stresses
Low viscosity
Recommended Primer - LOCTITE 7649 (NZSB Code: 05133309) / LOCTITE 7471 (NZSB Code: 05202502) Refer to TDS
Recommend Cleaning/Surface Preparation - LOCTITE SF 7063 (Code: 427410)

TECHNICAL SPECIFICATIONS
Term / Description
Mfr No. 30015
Applcation Retaining - Securing Metal Cylindrical Assemblies
Strength Medium/High
Appearance Green Liquid
Cure Anaerobic
Temperature Range -55C to +150C
Fixture Time 10min
Shear Strength, Grit Blasted Steel 2300psi
Gap Fill 0.15mm
Viscosity Low
