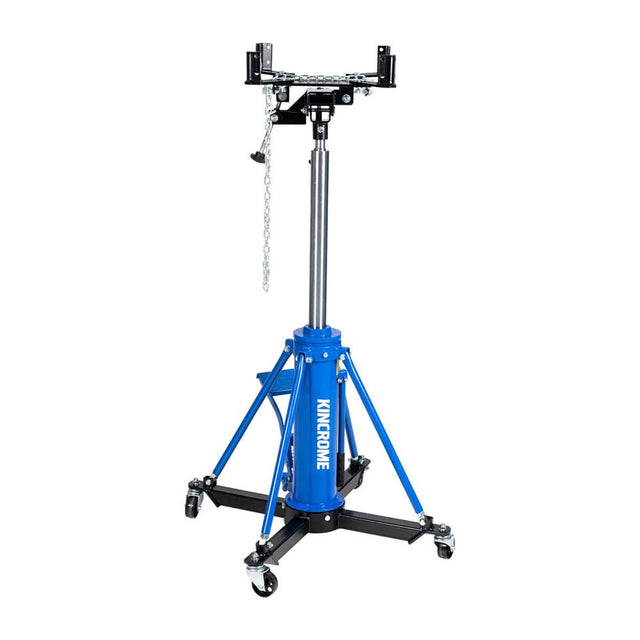

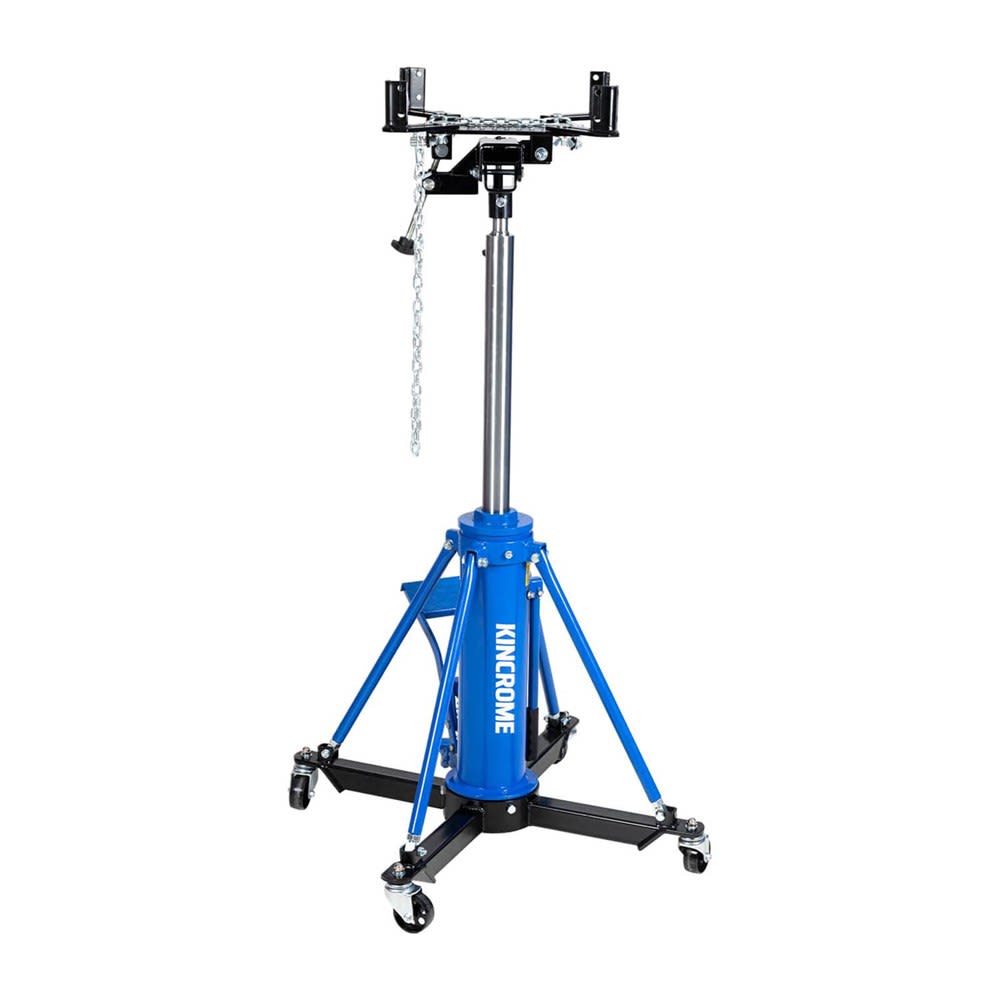

Kincrome Dual Stage Transmission Jack 1000kg (Each)

The Kincrome 1,000kg Vertical Transmission Jack is designed predominantly as a support tool when installing and removing transmissions, featuring a hydraulic foot pedal system with smooth lift and descent. The wide base, 4-leg design offers safety, security and stability when removing and installing transmissions. It is enhanced by the heavy-duty cast iron swivel castors, providing easy maneuverability when under load
1,000kg working load limit
Dual stage transmission jack
Industrial workshop quality
Takes the hard work and danger out of transmission removals and installations
Suits FWD, RWD and 4WD light cars or trucks
Adjustable transmission saddle and safety chains
Steering handle for effortless maneuverability
Wide 4-leg base gives ultimate stability
Heavy duty cast iron swivel castors
TECHNICAL SPECIFICATIONS
Rated Capacity
1,000kg
Lift Height
985mm
Height Raised
1,905mm
Height Lowered
920mm
First Stage Ram Stroke
505mm
Second Stage Ram Stroke
480mm
Base Dimensions
660 x 660mm
Saddle Size
280 x 280 x 165mm
Weight
74kg
Mfr No
K12134
