SKU:
PR379158

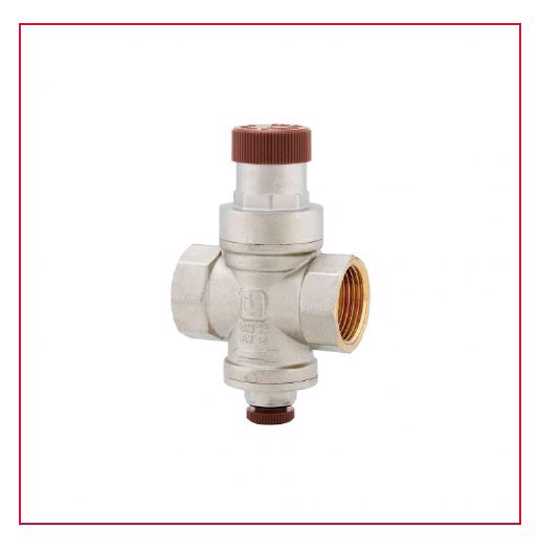

ITap Art361- Water Pressure Reducing Valve 20mm (Each)
$176.00
Unit price
/
Unavailable
ITap Art361- Water Pressure Reducing Valve 20mm (Each) is backordered and will ship as soon as it is back in stock.
Itap Europress pressure reducing valve is a device which reduces and stabilizes the upstream pressure to an adjusted downstream pressure. When the entering pressure from the public mains is too high and variable, pressure reducing valve stabilizes the downstream pressure to the adjusted one.
Female/female threads.
Body in nickel-plated brass.
Minimum and maximum working temperatures: 0C - 80C.
Maximum inlet pressure: 15 bar.
Outlet Pressure can be adjusted between 1 and 4 bar
Factory pre-adjustment 3 bar.
Art. 361: outlet pressure gauge connection 1/4 .
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Ideal for domestic water services, heating and air-conditioning plants, compressed air systems. Also can be used with water, compressed air and no-aggressive fluids.
TECHNICAL SPECIFICATIONS
Brand/ Model iTap Art-361
Size 20mm
Female/female threads.
Body in nickel-plated brass.
Minimum and maximum working temperatures: 0C - 80C.
Maximum inlet pressure: 15 bar.
Outlet Pressure can be adjusted between 1 and 4 bar
Factory pre-adjustment 3 bar.
Art. 361: outlet pressure gauge connection 1/4 .
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Ideal for domestic water services, heating and air-conditioning plants, compressed air systems. Also can be used with water, compressed air and no-aggressive fluids.
TECHNICAL SPECIFICATIONS
Brand/ Model iTap Art-361
Size 20mm
