Hitachi Globe Valve 150lb Flanged 80NB
$3,765.00
Unit price
/
Unavailable

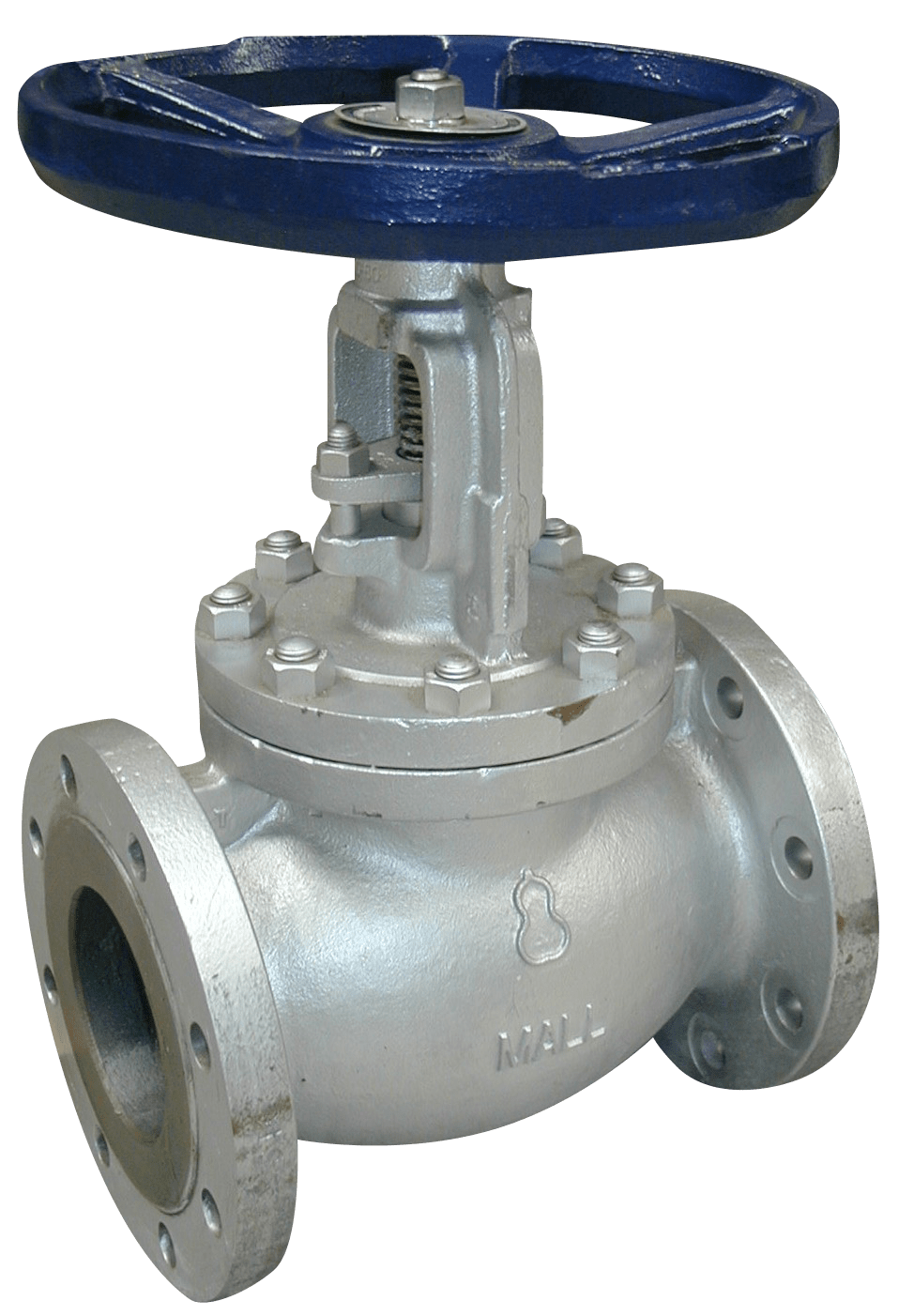

Hitachi Globe Valve 150lb Flanged 80NB
Malleable iron, flanged 150lb globe valve 80NB
Body Materials: Malleable Cast Iron
Ends: Flanged ANSI 150
Temperature Range: Up to 300 C
Max. Operating Pressure: 13.7 Bar water, oil, gas - Cold and 10 Bar Steam
Seat Materials: Stainless Steel
Specifications / Standards: Hitachi Model M150FGO
Disclaimer: The product images shown are for illustration purposes only and may not be an exact representation of the product.

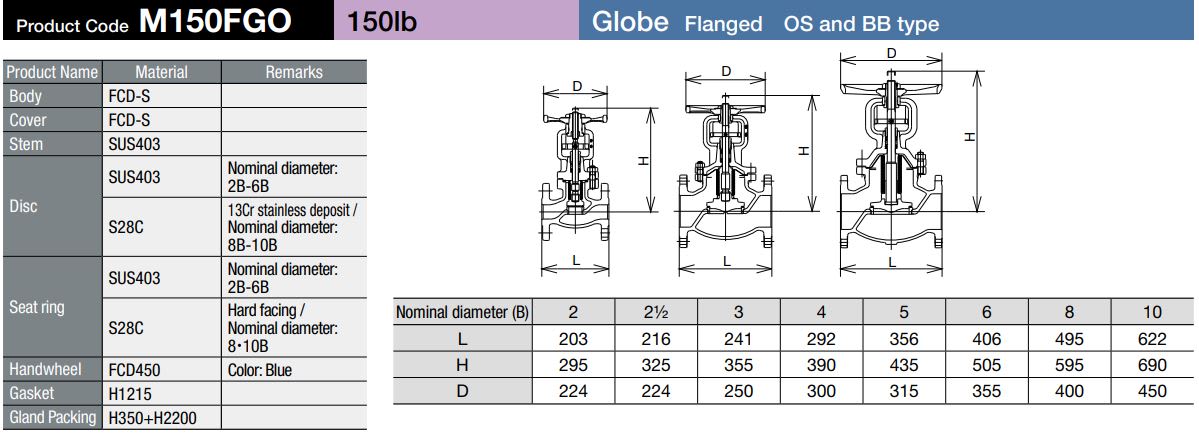

TECHNICAL SPECIFICATIONS
Specifications / Standards:
Hitachi Model M150FGO
Nominal Size mm
80mm
Non-Shoick CWP Bar
13.7 bar
Malleable iron, flanged 150lb globe valve 80NB
Body Materials: Malleable Cast Iron
Ends: Flanged ANSI 150
Temperature Range: Up to 300 C
Max. Operating Pressure: 13.7 Bar water, oil, gas - Cold and 10 Bar Steam
Seat Materials: Stainless Steel
Specifications / Standards: Hitachi Model M150FGO
Disclaimer: The product images shown are for illustration purposes only and may not be an exact representation of the product.
TECHNICAL SPECIFICATIONS
Specifications / Standards:
Hitachi Model M150FGO
Nominal Size mm
80mm
Non-Shoick CWP Bar
13.7 bar
