SKU:
PR809604

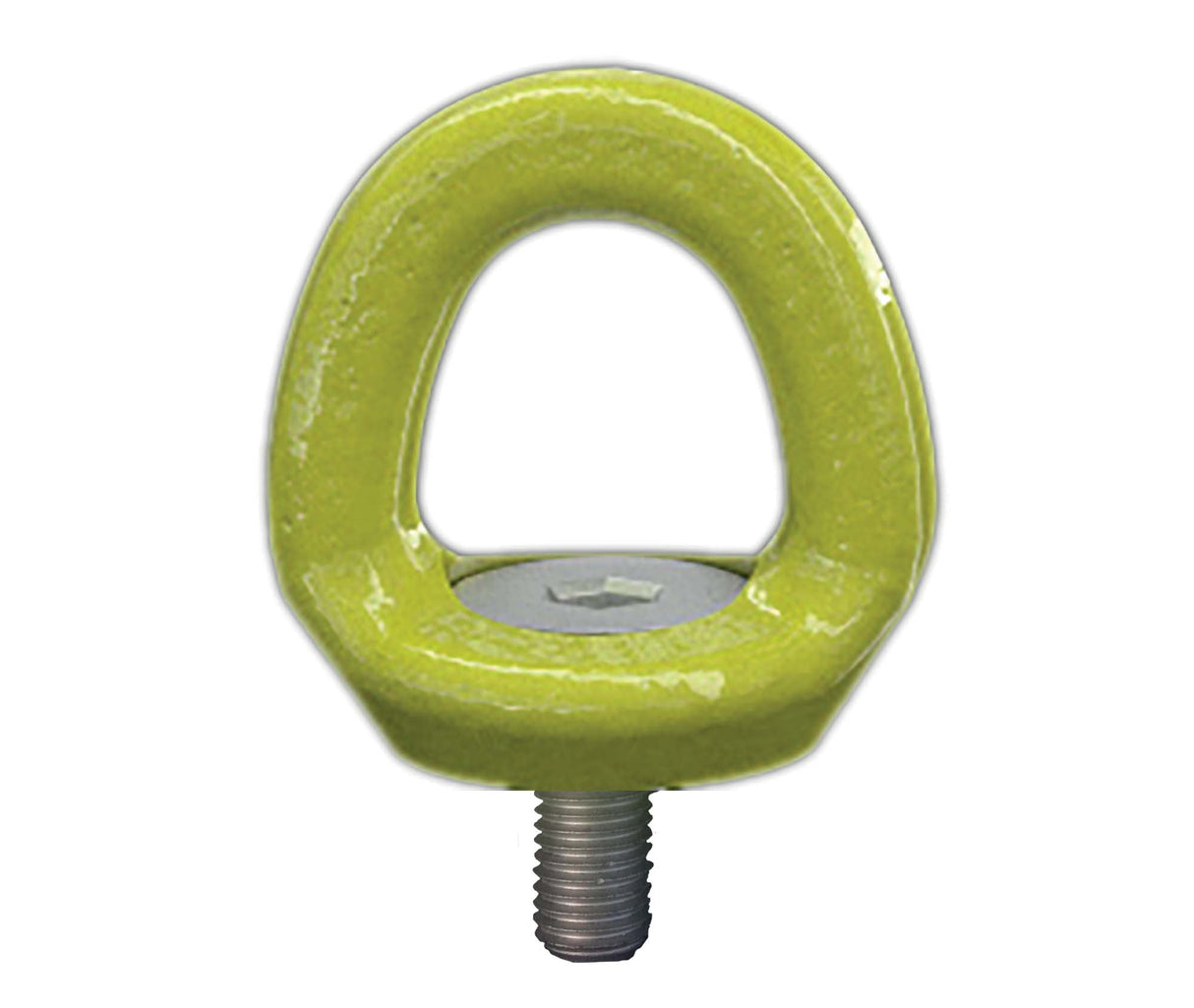

Gunnebo Rotating Eye Lifting Point 8.1T, M24 (Each)
$571.00
Unit price
/
Unavailable
RELP hexagon socket makes it easy to disassemble/assemble using a standard allen key
Automatically adjusts to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation
Ideal for top mounting and when a quick and easy on-hooking is important

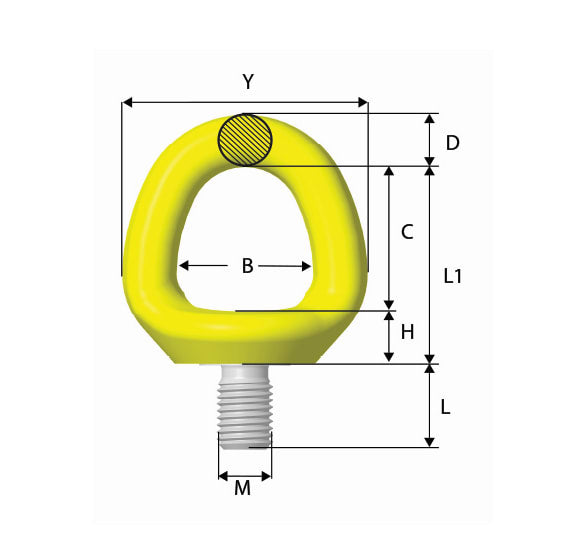

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Thread Size (M)
M24
WLL Straight Lift
8.1T
WLL All Directions
3.3T
B
50mm
C
51mm
D
19mm
H
20mm
L
36mm
L1
71mm
Y
88mm
Automatically adjusts to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation
Ideal for top mounting and when a quick and easy on-hooking is important
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Thread Size (M)
M24
WLL Straight Lift
8.1T
WLL All Directions
3.3T
B
50mm
C
51mm
D
19mm
H
20mm
L
36mm
L1
71mm
Y
88mm
