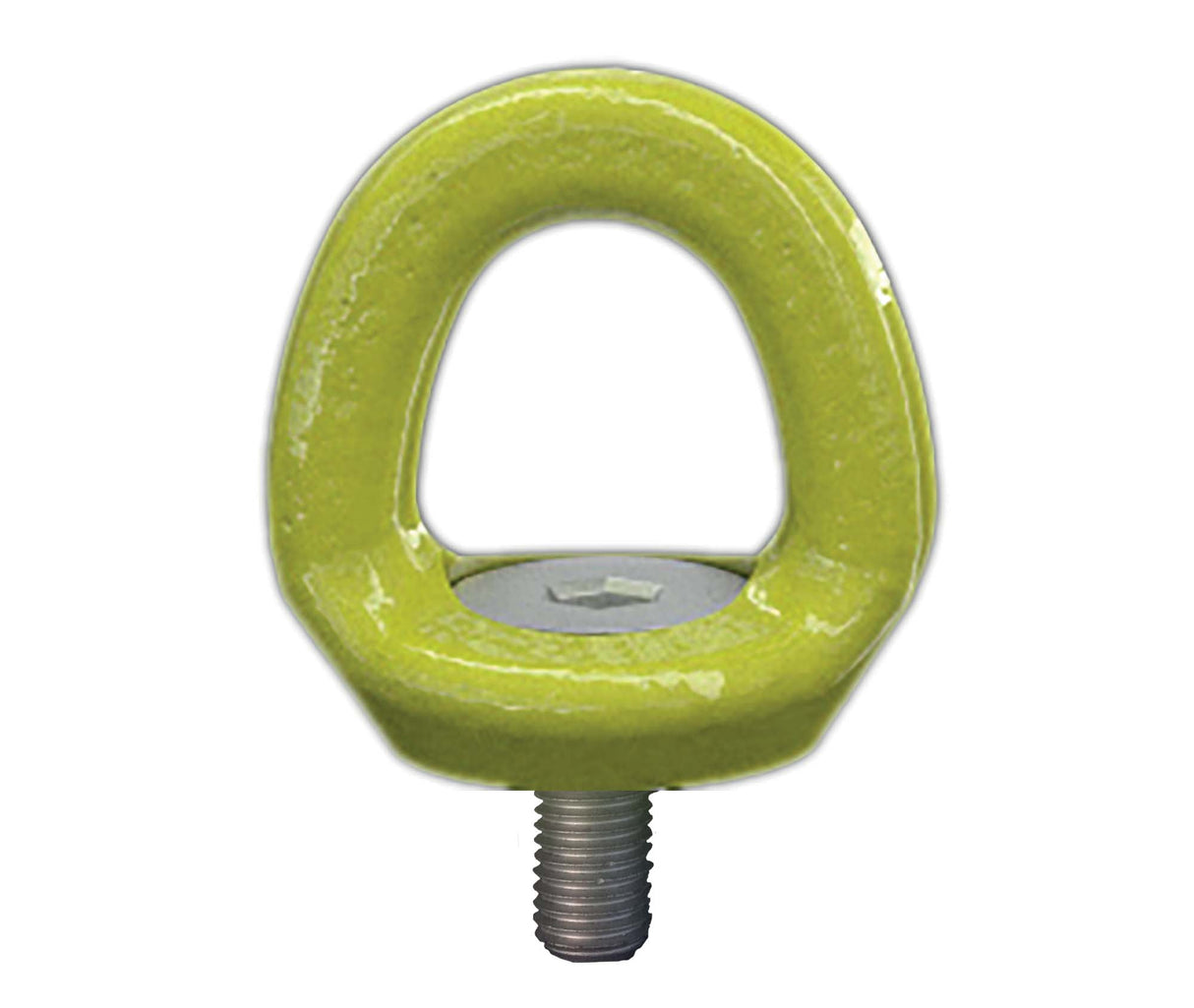

Gunnebo Rotating Eye Lifting Point 3.5T, M16 (Each)
$322.00
Unit price
/
Unavailable
RELP hexagon socket makes it easy to disassemble/assemble using a standard allen key
Automatically adjusts to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation
Ideal for top mounting and when a quick and easy on-hooking is important

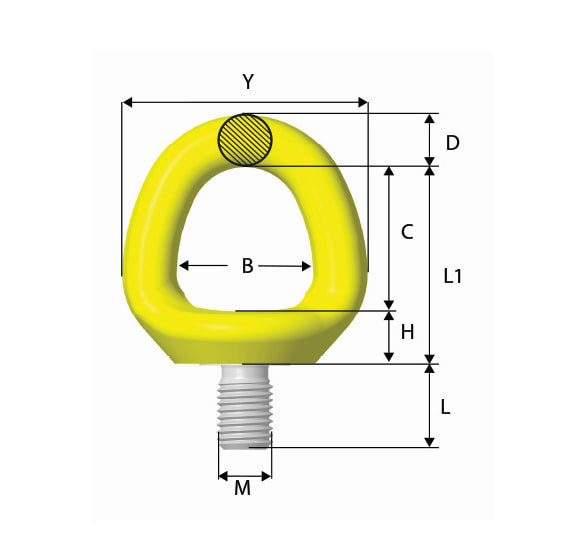

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Thread Size (M)
M16
WLL Straight Lift
3.5T
WLL All Directions
1.5T
B
39mm
C
41mm
D
15mm
H
16mm
L
24mm
L1
57mm
Y
70mm
Automatically adjusts to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation
Ideal for top mounting and when a quick and easy on-hooking is important
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Thread Size (M)
M16
WLL Straight Lift
3.5T
WLL All Directions
1.5T
B
39mm
C
41mm
D
15mm
H
16mm
L
24mm
L1
57mm
Y
70mm
