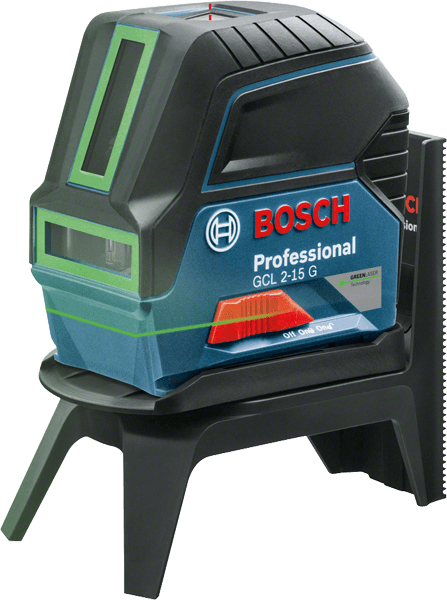

GCL2-15G Bosch Green Combi Laser
$768.00
Unit price
/
Unavailable
Four times better visibility thanks to green laser lines
Green horizontal and vertical lines for maximal visibility
Multifunctional rotating mount for easy alignment of the laser lines around the plumb points
Red plumb points for precise transfer application
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
GCL2-15G
Laser diode
Line: 500 540 nm, < 10 mW, Point: 630 650, < 1 mW
Operating temperature
-10 50°C
Storage temperature
-20 70°C
Laser class
2
Working range
15 m
Accuracy
± 0.3 mm/m
Working range of laser points, max.
10 m (top), 10 m (bottom)
Self-levelling range
± 4°
Levelling time
4 s
Dust and splash protection
IP 54
Power supply
3 x 1.5 V LR6 (AA)
Tripod thread
1/4", 5/8"
Weight, approx.
0.49 kg
Colour of laser line
Green
Projection
2 lines / 2 points
Plumb point accuracy
± 0.7 mm/m
Green horizontal and vertical lines for maximal visibility
Multifunctional rotating mount for easy alignment of the laser lines around the plumb points
Red plumb points for precise transfer application
