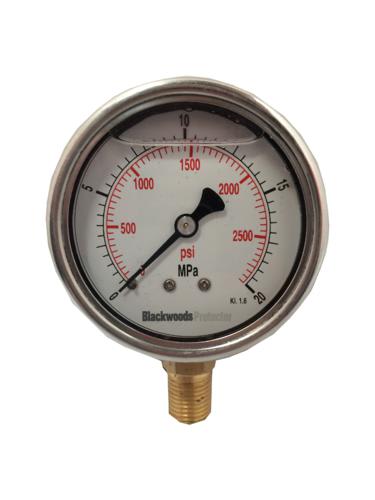

Gauges Pressure SS- 1/4" BSP-Bottom- 0/20MPa

Discover the durability and precision of our **Gauges Pressure SS- 1/4" BSP-Bottom- 0/20MPa**. Crafted with industrial-grade materials, this **63mm stainless steel pressure gauge** features a robust stainless steel grade 304 case that ensures longevity in harsh environments. Engineered for accuracy with a tolerance of 1.6%, it is ideal for applications in **hydraulic plants, mining operations, and irrigation systems**. This gauge is equipped with a copper alloy bourdon and socket, making it suitable for measuring pressures up to **20 MPa**. With a glycerine-filled design, it minimizes vibration impact and enhances performance in fluctuating conditions. The **Plexiglass window** coupled with a neoprene seal protects against outdoor elements, making this product perfect for heavy-duty service. Operating efficiently in temperatures ranging from -25°C to +65°C, the **Gauges Pressure SS** is the perfect solution for industries requiring reliable pressure readings under challenging conditions. Ensure your operations run smoothly with this high-quality pressure gauge that combines performance, reliability, and exceptional value. Ideal for both industrial and commercial setups, this pressure gauge supports the safety and efficiency of your systems. Choose Smartfox NZ to elevate your equipment with our top-notch pressure gauges, where functionality meets quality.

63mm stainless steel case pressure gauges are robust industrial quality enclosed within a stainless steel grade 304 case and bezel. Plexi glass window and neoprene seal. Designed for heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail.
Copper alloy bourdon and socket.
Specific application examples are hydraulic plant, mining and irrigation equipment.
Accuracy 1.6%
Ambient Temperature: -25 C to +65 C

TECHNICAL SPECIFICATIONS
Brand/ Model Gauges Pressure
Pressure Min & Max 0-20
Scale Type MPa- Dual
Glycerine Filled
Case Dia(mm) 63
Stem Mount Entry Bottom
Connection 1/4" BSP
