SKU:
PR705422

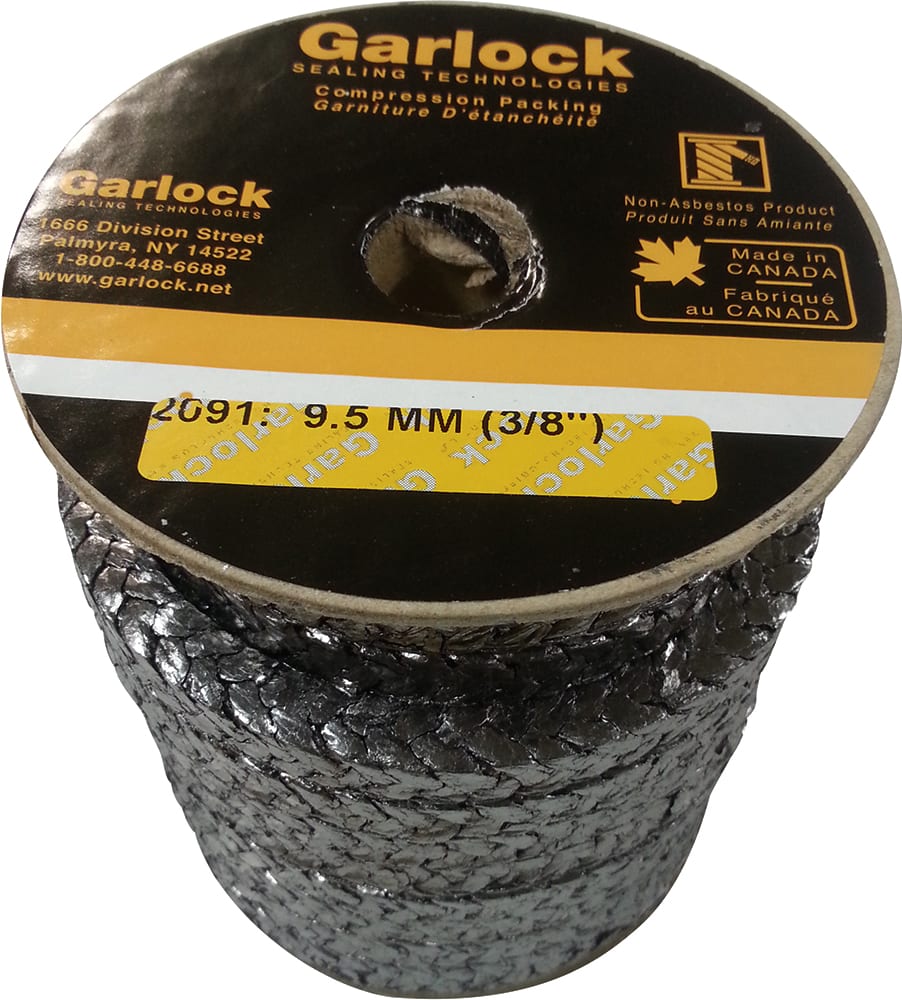

Garlock Style -2091 Graphite Packing 5.1m x 12.5mm
$1,491.00
Unit price
/
Unavailable
Garlock Style -2091 Graphite Packing 5.1m x 12.5mm
Style 2091 consists of pure expanded flexible graphite extruded over a Stainless Steel wire core to form the yarn which is then used in braiding the packing. The finished braid is non-scoring.
Suitable in steam with high temperature/pressure combinations
Less scoring of the stem as the Stainless Steel wire is encapsulated
Superior sealing properties than expanded pure graphite rings
Good thermal conductivity
TECHNICAL SPECIFICATIONS
Brand
Garlock Style-2091
Mfr Part No
41691-1232
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
Style 2091 consists of pure expanded flexible graphite extruded over a Stainless Steel wire core to form the yarn which is then used in braiding the packing. The finished braid is non-scoring.
Suitable in steam with high temperature/pressure combinations
Less scoring of the stem as the Stainless Steel wire is encapsulated
Superior sealing properties than expanded pure graphite rings
Good thermal conductivity
TECHNICAL SPECIFICATIONS
Brand
Garlock Style-2091
Mfr Part No
41691-1232
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
