SKU:
PR705792
Garlock Style-1333G Reinforced Graphite 20.1mX5mm 20.1M X 5mm
$2,894.00
Unit price
/
Unavailable

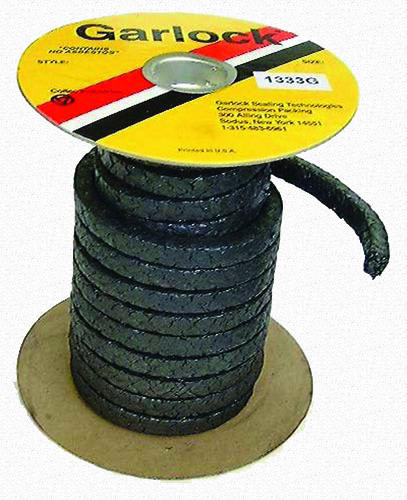

Garlock Style-1333G Reinforced Graphite 20.1mX5mm 20.1M X 5mm
1333-G is braided from graphite fibre reinforced flexible graphite yarns and high purity graphite filament yarns that appear on the corners as well as throughout the body of the packing. The graphite reinforcement of the flexible graphite yarns provides greater tensile strength. The placement of the graphite filament yarns adds abrasion resistance for rotary services and anti-extrusion resistance for valve applications.
All graphite PTFE free construction maximises reliability and stability in high temperatures, provides excellent chemical resistance and also dissipates heat quickly so equipment runs cooler and requi
No additional end ring material is required for valve installations.
The versatility of 1333-G can result in significant savings in inventory investment.
Contains a passive corrosion inhibitor.
TECHNICAL SPECIFICATIONS
Brand
Garlock Style 1333G
Mfr Part No
41033-1012
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
Max Temp (Steam)
650 OC (1200 OF)
Max Shaft Speed
23 m/s (4800 fpm)
Pressure Valve
275 bar (4000 psi)
Pressure Rotary
35 bar (500 psi)
1333-G is braided from graphite fibre reinforced flexible graphite yarns and high purity graphite filament yarns that appear on the corners as well as throughout the body of the packing. The graphite reinforcement of the flexible graphite yarns provides greater tensile strength. The placement of the graphite filament yarns adds abrasion resistance for rotary services and anti-extrusion resistance for valve applications.
All graphite PTFE free construction maximises reliability and stability in high temperatures, provides excellent chemical resistance and also dissipates heat quickly so equipment runs cooler and requi
No additional end ring material is required for valve installations.
The versatility of 1333-G can result in significant savings in inventory investment.
Contains a passive corrosion inhibitor.
TECHNICAL SPECIFICATIONS
Brand
Garlock Style 1333G
Mfr Part No
41033-1012
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
Max Temp (Steam)
650 OC (1200 OF)
Max Shaft Speed
23 m/s (4800 fpm)
Pressure Valve
275 bar (4000 psi)
Pressure Rotary
35 bar (500 psi)
