Flexi Skate Wheel Conveyor 460mm wide, 8m long
$12,455.00
Unit price
/
Unavailable

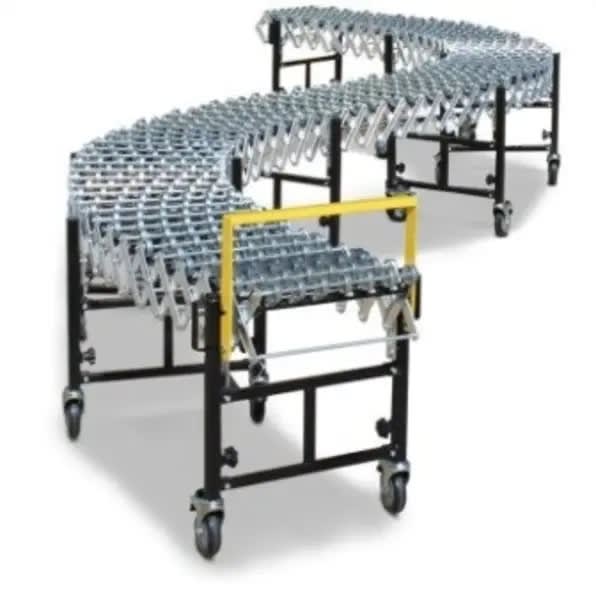

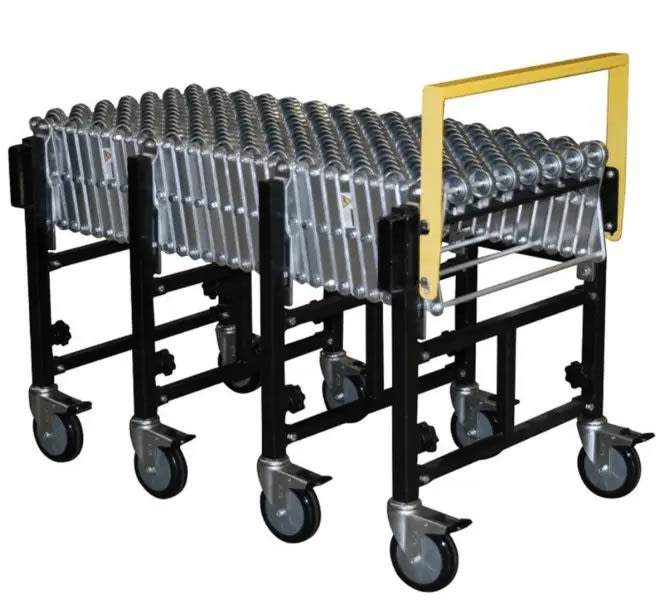

Flexi Conveyor, 460mm wide, 8m long, steel skate wheels
A proven performer for truck loading and unloading. Ideally suited for packaging, shipping and flexible assembly lines.
Self tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves
Adjustable height - Adjustable locking bolts to raise or lower the conveyor bed height. Heavy duty square tubing legs for longer service life
38mm side plates - Aluminium alloy construction features a ribbed design for added durability. Assembled with bolts and lock nuts
Structural steel support - Channel steel spans the entire conveyor width for unequalled strength
Castors with brakes - 127mm x 38mm swivel castors roll easily. Castor brakes lock both wheel and swivel simultaneously while the conveyor is in use
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Height
700mm Min - 1000 max
Width
460mm
Length Retractred
2000mm
Length Extended
8000mm
A proven performer for truck loading and unloading. Ideally suited for packaging, shipping and flexible assembly lines.
Self tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves
Adjustable height - Adjustable locking bolts to raise or lower the conveyor bed height. Heavy duty square tubing legs for longer service life
38mm side plates - Aluminium alloy construction features a ribbed design for added durability. Assembled with bolts and lock nuts
Structural steel support - Channel steel spans the entire conveyor width for unequalled strength
Castors with brakes - 127mm x 38mm swivel castors roll easily. Castor brakes lock both wheel and swivel simultaneously while the conveyor is in use
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Height
700mm Min - 1000 max
Width
460mm
Length Retractred
2000mm
Length Extended
8000mm
