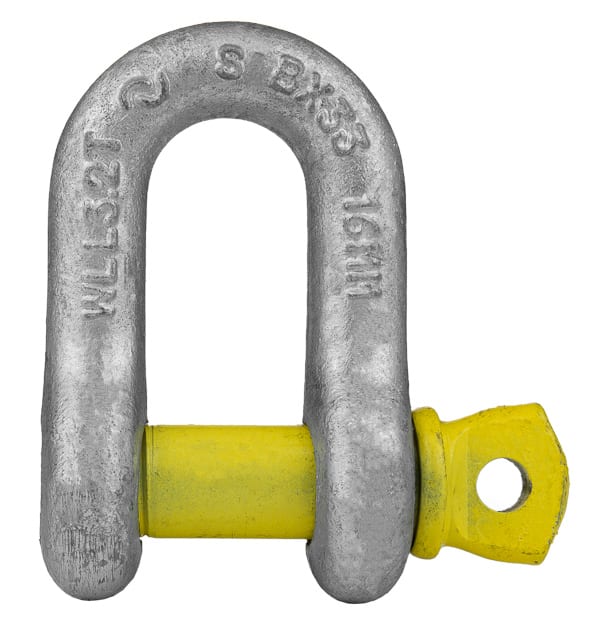

Bullivants Dee Shackle Screw Pin 3.20T WLL 16mm Body Diameter (Each)

Introducing the Dee Shackle 19mm Pin with a remarkable Working Load Limit (WLL) of 3.20T, designed for reliability and versatility in your lifting applications. This top-tier dee shackle is perfect for direct connections to various loads, ensuring secure and safe lifting every time. Crafted from high-quality Alloy Grade S and galvanized for added durability, this screw pin shackle is ideal for non-permanent applications and is suitable for a wide range of tasks in conjunction with chains, wire ropes, and synthetic slings. Each dee shackle is individually stamped with its WLL, complying with AS 2741:2002 standards, making it a trustworthy choice for heavy-duty lifting needs. Whether you’re lifting, rigging, or securing loads, our 19mm Dee Shackle is engineered to meet your demands and provide peace of mind. Please note that the image is for representation purposes only; the actual product may vary. Get the most out of your lifting gear with Smartfox NZ's exceptional dee shackle that encapsulates strength, safety, and versatility.

Dee Shackle 19mm Pin 3.20T WLL
Dee shackle suitable for 1 direct connection to the load
Screw pin shackle for use in non-permanent applications
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ

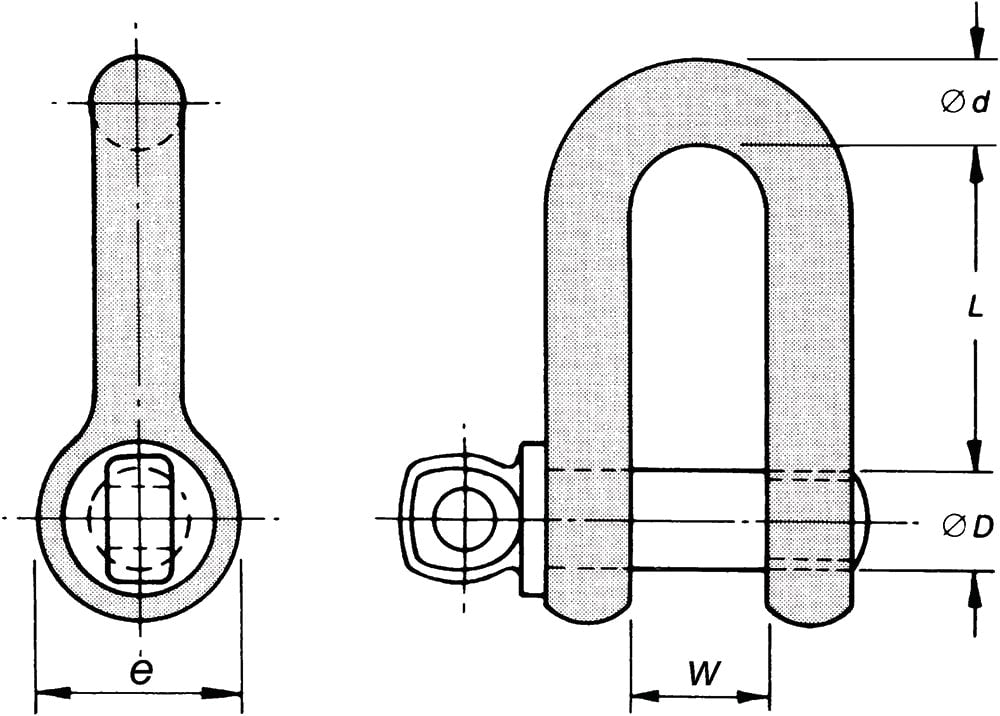

TECHNICAL SPECIFICATIONS
Material Alloy Grade S Galvanised
WLL 3.20t
d 16mm
D 19mm
W 27mm
L 51mm
e 40mm
