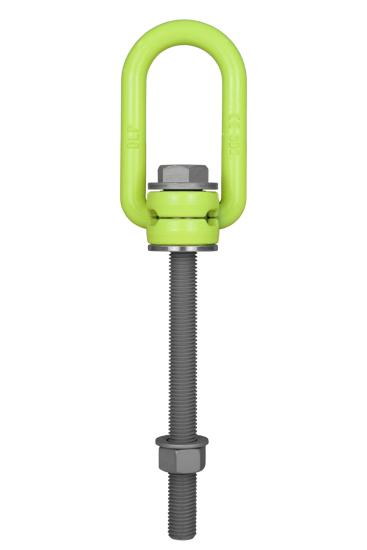

De-Centred Lifting Point 4.1T, M24 Long Bolt (Each)

Introducing the De-Centred Lifting Point 4.1T with M24 Long Bolt from Smartfox NZ, designed to enhance your lifting capabilities in confined workspaces. This superior lifting point features a hexagon bolt, which is RFID prepared for convenient disassembly and reassembly with a wrench. Its innovative stay-up function allows for easy on-hooking, especially in areas with limited overhead space. The De-Centred Lifting Point is perfect for various applications, including narrow spaces, corners, edge positions, angular lifts, and multiple part lifts. With clear identification markings for traceability and a robust working load limit of 4.1 tons, you can rely on this lifting point for heavy-duty tasks. The mounting torque specifics and manufacturer identification ensure peace of mind during operations. Built with a safety factor of 4:1, this lifting point adheres to ISO 898-1 Class 10.9 standards for bolts, nuts, and washers, ensuring high performance and reliability. Elevate your lifting equipment with the De-Centred Lifting Point 4.1T, a critical tool for safety and efficiency in the workplace.

DLP has a hexagon bolt (RFID prepared) to disassemble/assemble with a wrench easily
Stay-up function for easy on-hooking when there is limited space
Ideal for narrow spaces, such as corners or edge position, angular lifts, tilting under load, multiple part lift
Identification markings for traceability, Working Load Limit, mounting torque and manufacturer s identification
Safety factor 4:1
Bolt, nut and washer according to: ISO 898-1 Class 10.9

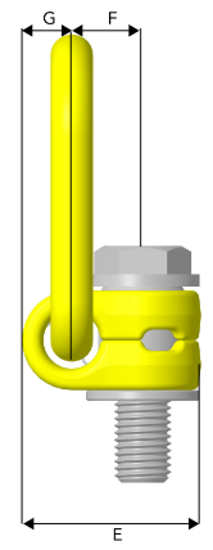

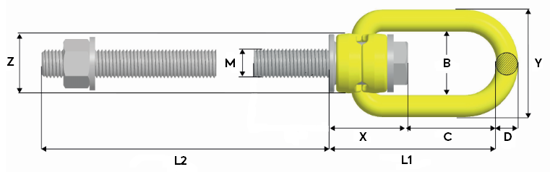

TECHNICAL SPECIFICATIONS
Working Load Limit-Straight Lift 4.1T
Bolt Diameter M24
Bolt Length 238MM
