SKU:
PR375700

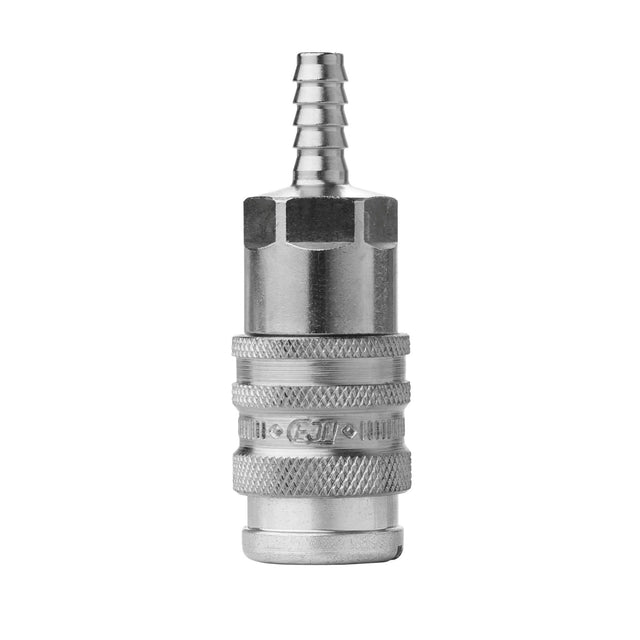

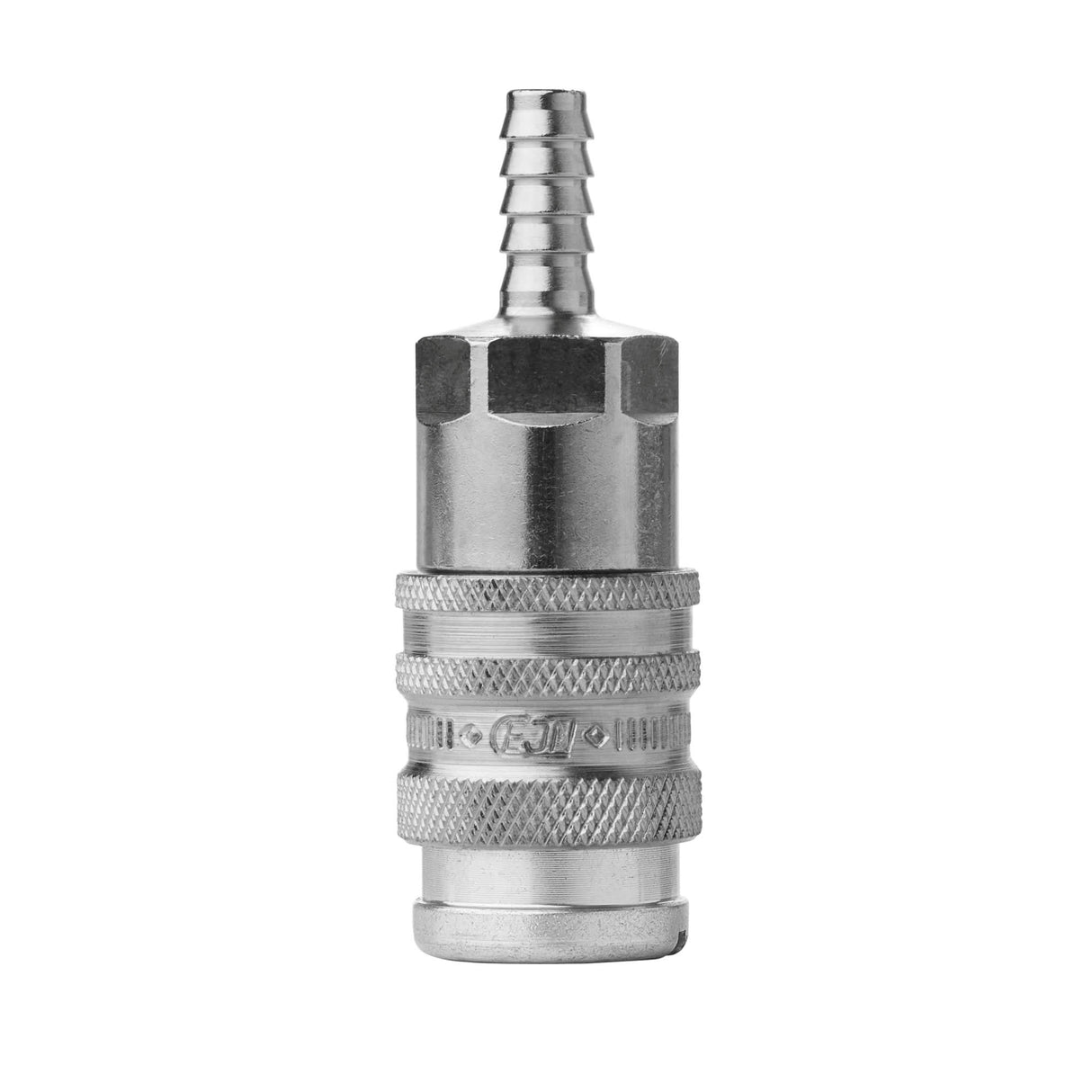

CEJN Breathing Air 342 Coupling Hosetail 10mm (Each)
$259.00
Unit price
/
Unavailable
CEJN Breathing Air 342 Series fittings have a high-flow rate, a broad connection range and require only minimal force to connect. They are well-suited for breathing air applications in demanding industrial environments.
Compatible with Series 341, Series 342, and Series 346 nipples
Automatic safety-locking feature
Extremely high flow capacity
One-hand operation
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
10 342 1004
Connection Type
Hosetail
Connection Size
10mm (3/8")
Material
Zinc-Plated Steel
Seal Material
NBR
Air Flow
1950 l/min (69.0 CFM)
Max. Working Pressure
35 Bar (508 PSI)
Min. Burst Pressure
140 Bar (2030 PSI)
Temperature Range
-30 C to +100 C (-22 F to +212 F)
Nominal Flow Diameter
7.4mm (9/32")
Compatible with Series 341, Series 342, and Series 346 nipples
Automatic safety-locking feature
Extremely high flow capacity
One-hand operation
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
10 342 1004
Connection Type
Hosetail
Connection Size
10mm (3/8")
Material
Zinc-Plated Steel
Seal Material
NBR
Air Flow
1950 l/min (69.0 CFM)
Max. Working Pressure
35 Bar (508 PSI)
Min. Burst Pressure
140 Bar (2030 PSI)
Temperature Range
-30 C to +100 C (-22 F to +212 F)
Nominal Flow Diameter
7.4mm (9/32")
