CAMERA ADD ON INTERFACE MERCEDES VARIOUS MODELS 2002 - 2020

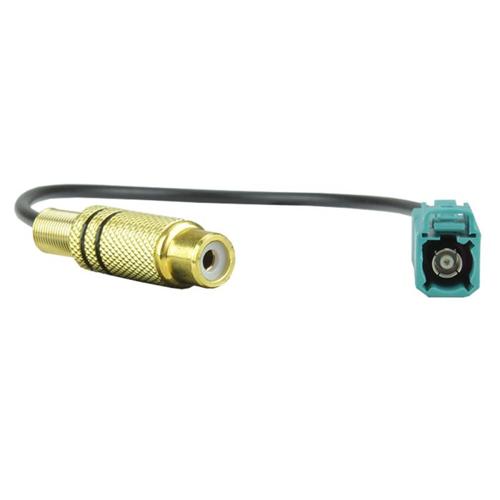

The CAM-MB12-AD is an adapter harness for adding a reverse camera video input in various Mercedes models (view the product applications for a full list). This product connects inline at the back of the original head unit, providing 6v camera power outputs and an RCA video input. A reverse gear feed needs to be supplied to the adapter. Note: This cable is only compatible with single fakra connections. Double fakra connections are not supported. NTSC only. You will need to code the head unit for camera input.

Product Applications:
Mercedes A-Class (W176) 2013-2018
Mercedes B-Class (W246) 2012-2018
Mercedes C-Class (W204) 2007-2014
Mercedes C-Class (W205) 2014-2019
Mercedes CL (C216) 2007-2013
Mercedes CLC (CL203) 2008-2011
Mercedes CLS (W219/W218) 2005-2018
Mercedes E-Class (W211/W212) 2002-2016
Mercedes GL-Class (X164) 2006-2012
Mercedes M-Class (W164/W166) 2005-2019
Mercedes R-Class (V251) 2006-2012
Mercedes SLK-Class (R171 Facelift) 2009-2011
Mercedes SLK-Class (R172) 2011-2020
Mercedes Sprinter (W906/NCV3) 2007-2018
Mercedes Viano (W639) 2004-2014
Mercedes Vito (W639) 2003-2014
