SKU:
PR704073

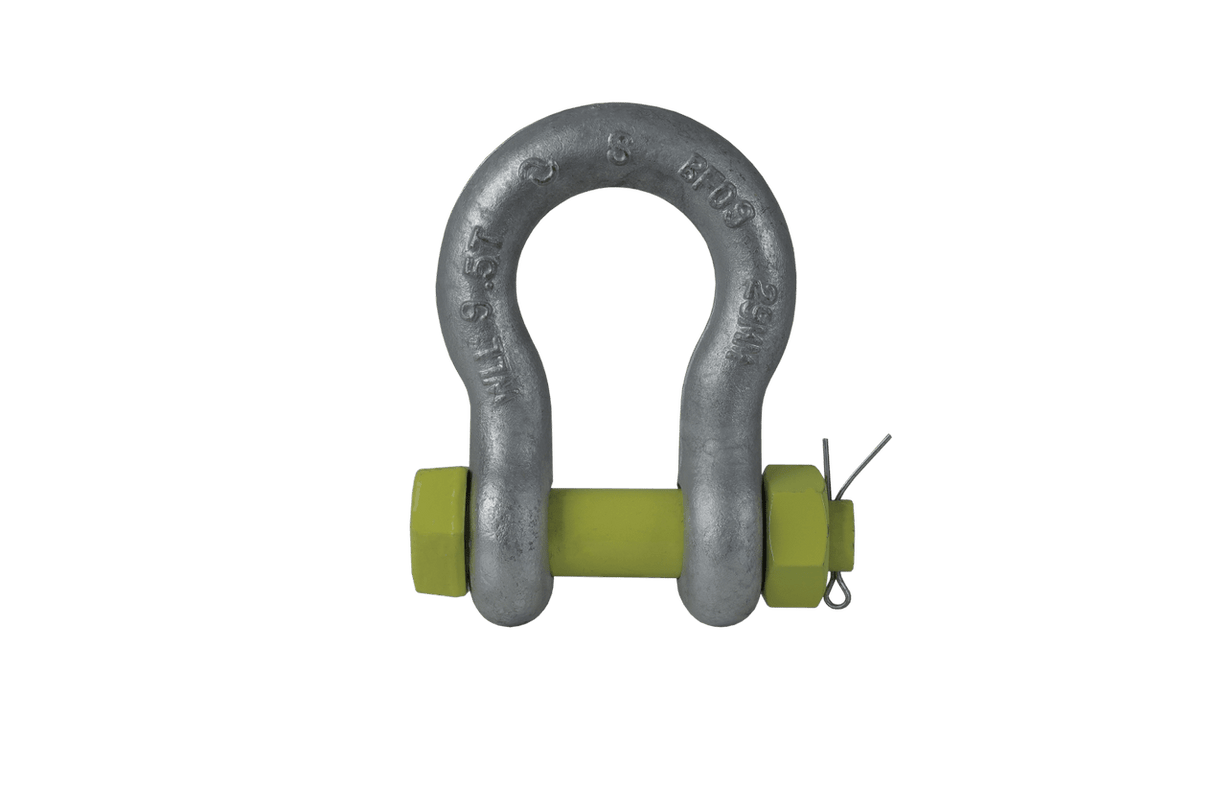

Bullivants Bow Shackle Safety Pin 9.5T WLL 29mm Body Diameter (Each)
$234.00
Unit price
/
Unavailable
Bullivants Bow Shackle Safety Pin 9.5T WLL 29mm Body Diameter (Each)
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Bow shackle suitable for 2 direct connections to the load
Safety pin shackle for use where greater load security is required in permanent and long term applications and where vibration or movement of the load may occur
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ

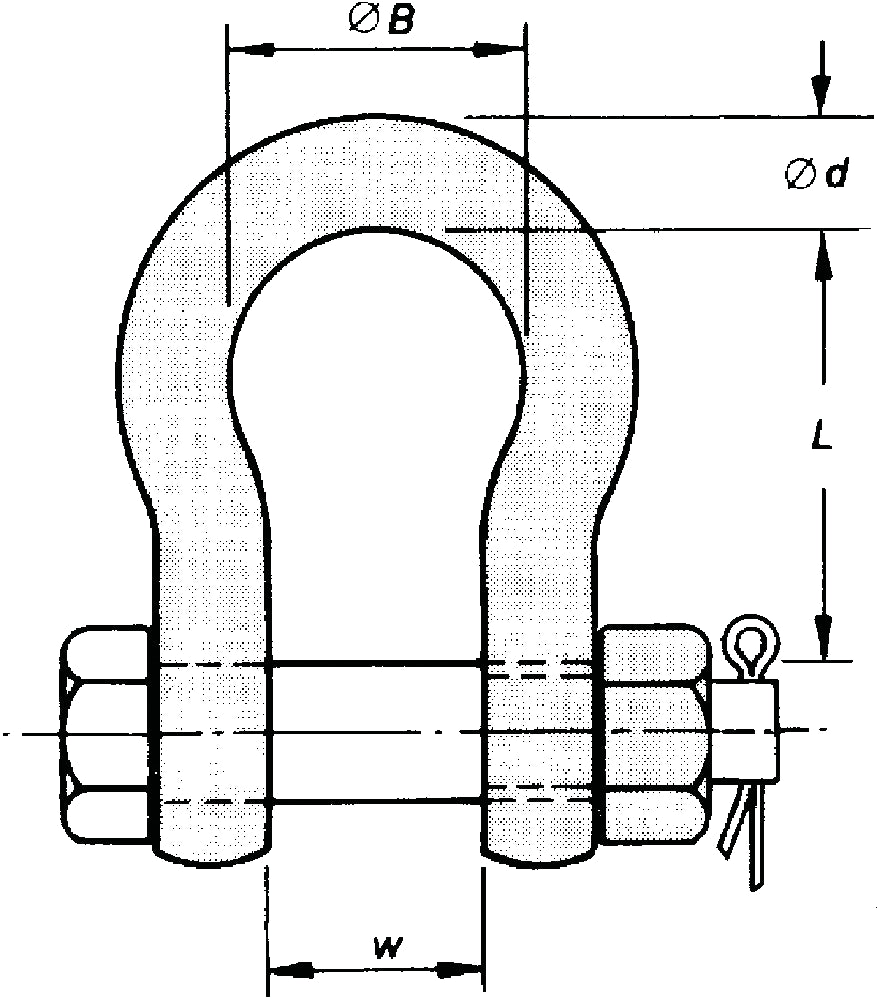

TECHNICAL SPECIFICATIONS
Mfr No
WSS-0095-SA-B
Finish
Galvanised
WLL
9.50t
d
29mm
D
32mm
W
46mm
B
74mm
L
108mm

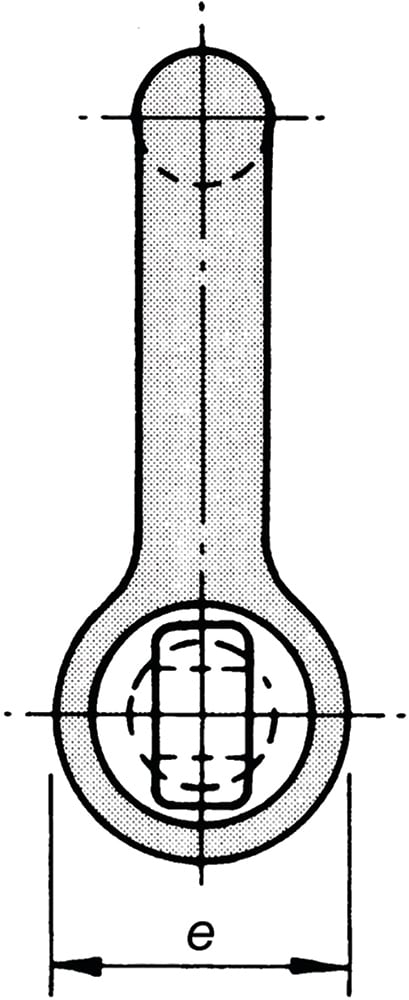

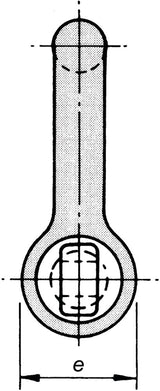

e
67mm
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Bow shackle suitable for 2 direct connections to the load
Safety pin shackle for use where greater load security is required in permanent and long term applications and where vibration or movement of the load may occur
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
Mfr No
WSS-0095-SA-B
Finish
Galvanised
WLL
9.50t
d
29mm
D
32mm
W
46mm
B
74mm
L
108mm
e
67mm
