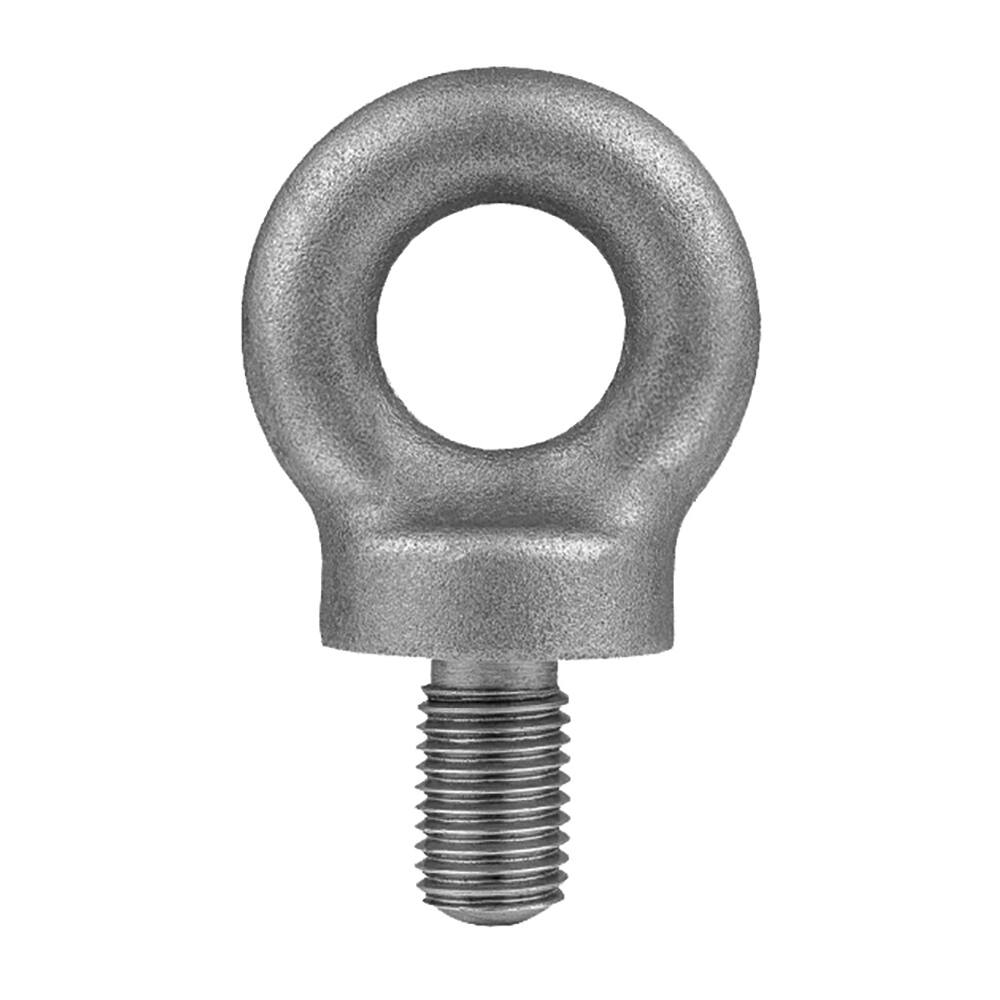

Bullivants Eye Bolt D/F-UNC 7/8" 2.00T WLL (Each)

Introducing the Bullivants Eye Bolt D/F-UNC 7/8" 2.00T WLL, the perfect solution for heavy-duty lifting and securing applications. This Grade 4 Imperial eyebolt features a durable UNC thread design, ensuring optimal stability and strength during critical operations. With a Work Load Limit (WLL) of 2.00 tons for F1 and 0.50 tons for F2, this reliable eye bolt is stamped with WLL F2 for easy identification and compliance. Engineered to meet AS 2317 standards, the Bullivants Eye Bolt guarantees high quality and safety in your lifting jobs. Crafted for versatility, it is ideal for construction, rigging, and various industrial applications, providing peace of mind with every lift. Its specifications include a 7/8" diameter, 50mm across the eye, and 9 threads per inch, making this eyebolt a robust choice for your needs. Please note, the image is for illustration purposes only, and the actual product may differ. Order the Bullivants Eye Bolt D/F-UNC today to elevate your lifting efficiency and ensure reliable performance in all your projects.

Bullivants Eye Bolt D/F-UNC 7/8" 2.00T WLL (Each)

Grade 4 Imperial Eyebolt
UNC Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

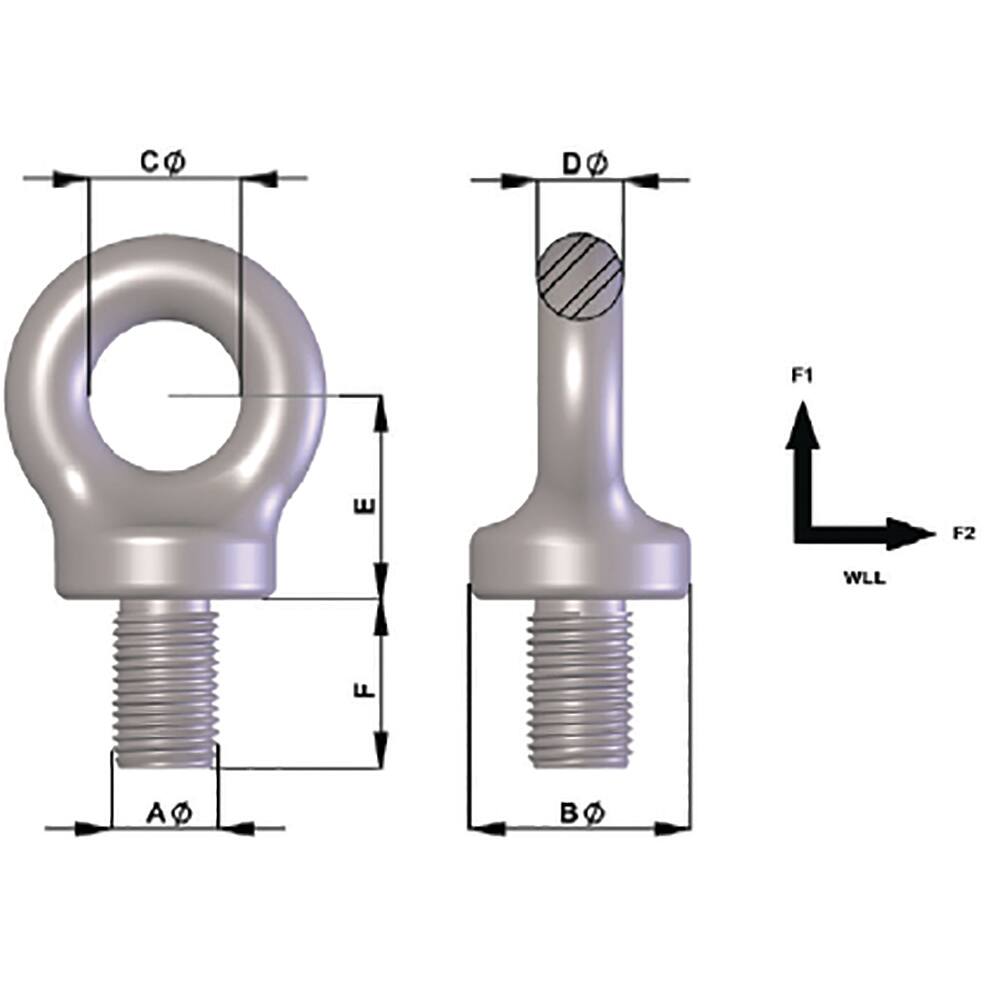

TECHNICAL SPECIFICATIONS
A (") 7/8
WLL F1 (t) 2.0
WLL F2 (t) 0.50
B (mm) 50
C (mm) 32
D (mm) 20
F (mm) 41
Threads Per Inch 9
