Bullivants Eye Bolt D/F-BSW 3/8" 0.25T WLL (Each)

The Bullivants Eye Bolt D/F-BSW 3/8" is a premium Grade 4 Imperial Eyebolt, designed for reliability and strength in various applications. Featuring a BSW thread, this robust eye bolt is stamped with a Working Load Limit (WLL) of F2 0.25T, ensuring it meets your lifting and securing needs safely. Manufactured in compliance with AS 2317 standards, it provides you with the peace of mind that comes from using high-quality, certified hardware.

This versatile eye bolt is perfect for construction, rigging, and other applications requiring dependable load-bearing capabilities. The dimensions include an A size of 3/8", with a WLL of 0.25 tons (F1) and 0.06 tons (F2). Additional specifications include a B diameter of 21 mm, a C diameter of 14 mm, a D diameter of 9 mm, and an F diameter of 17 mm. Its threads per inch are 16, making it compatible with various setups.

Whether you are looking to secure machinery, fasten components, or need reliable anchors for your projects, the Bullivants Eye Bolt D/F-BSW is an essential addition to your toolkit. Lightweight yet durable, this eye bolt can withstand challenging environments and heavy-duty tasks. Note: The image provided is for representation purposes only, and the actual product may differ slightly in appearance. Elevate your project with this reliable eye bolt today.

Bullivants Eye Bolt D/F-BSW 3/8" 0.25T WLL (Each)

Grade 4 Imperial Eyebolt
BSW Thread
Stamped with WLL F2
Complies with AS 2317

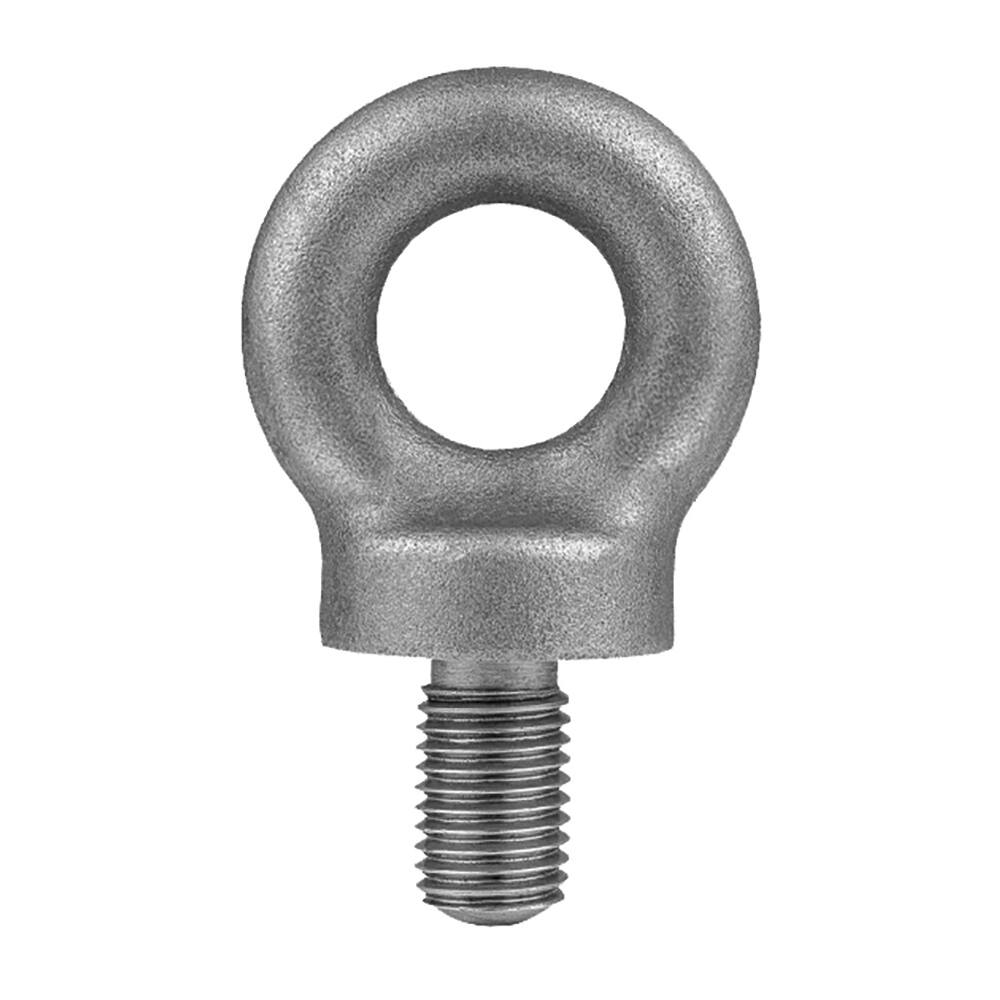

Image for representation purposes only, actual product may differ

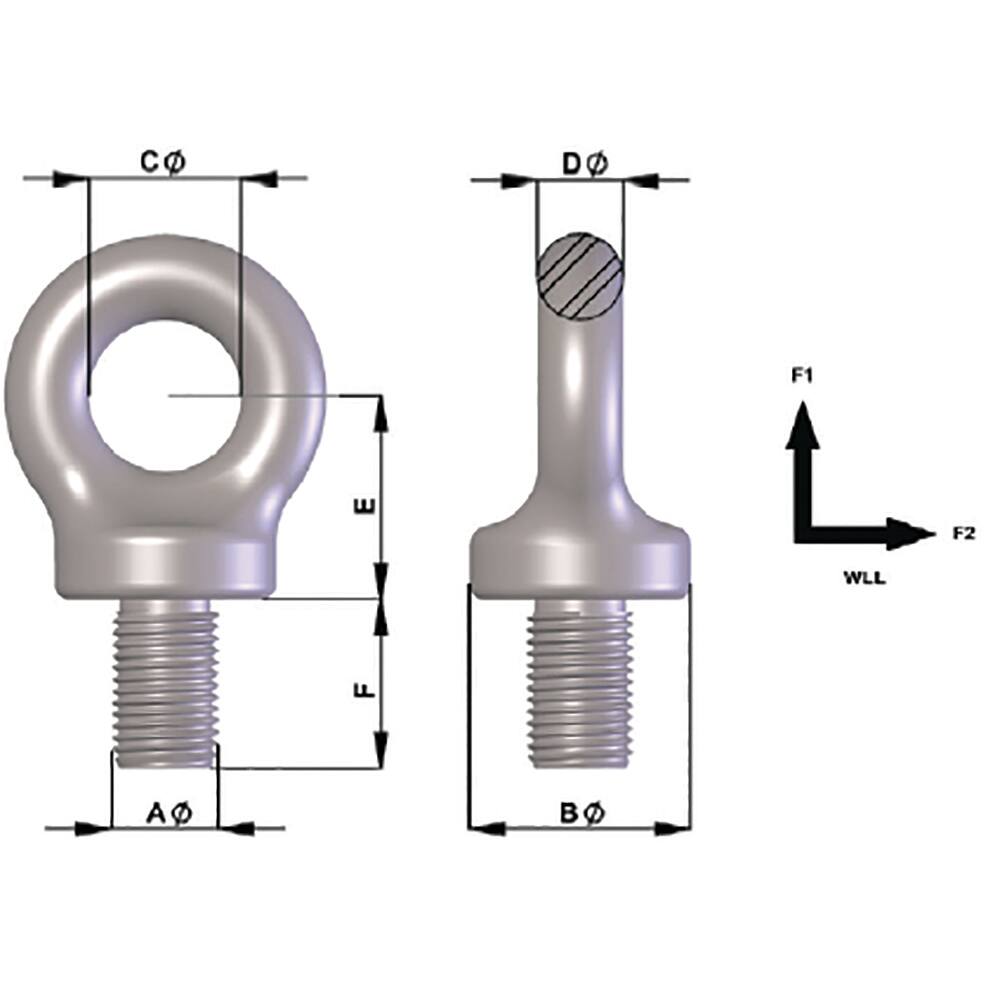

TECHNICAL SPECIFICATIONS
A (") 3/8
WLL F1 (t) 0.25
WLL F2 (t) 0.06
B (mm) 21
C (mm) 14
D (mm) 9
F (mm) 17
Threads Per Inch 16
