SKU:
PR801306

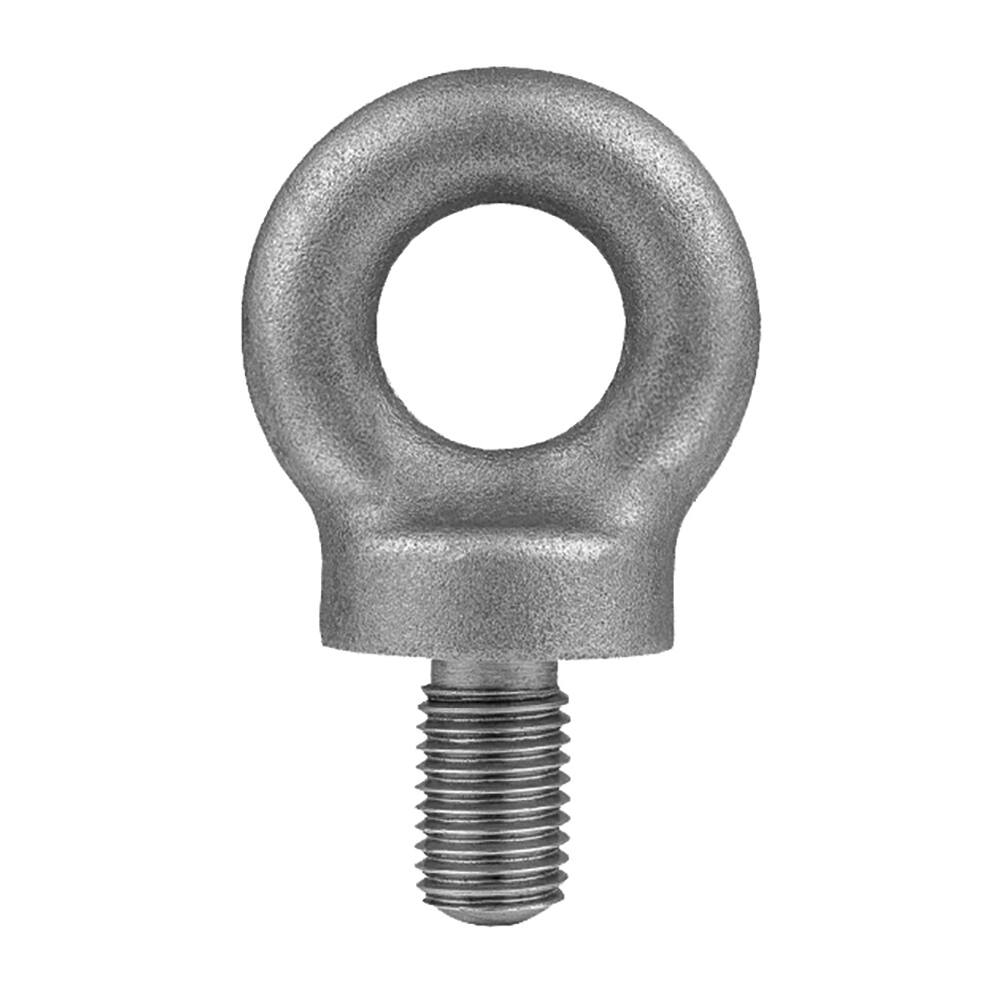

Bullivants Eye Bolt D/F-BSW 1/2" 0.40T WLL (Each)
$18.95
Unit price
/
Unavailable
The Bullivants Eye Bolt D/F-BSW 1/2" is a Grade 4 Imperial Eyebolt designed for robust applications with a working load limit (WLL) of 0.40T and 0.10T respectively. This heavy-duty eyebolt features a BSW thread, ensuring a secure fit for your lifting and securing needs. Stamped with the safe working load label 'WLL F2', it meets stringent AS 2317 standards, making it suitable for both commercial and DIY projects. Crafted to withstand various loads, the Bullivants Eye Bolt is ideal for lifting, rigging, and securing items across diverse environments. With dimensions of 1/2" in size, 28mm in width, 18mm in height, and a 21mm diameter, it offers versatility and strength necessary for your lifting tasks. Please note, the image shown is for representation purposes only; the actual product may vary. Choose the Bullivants Eye Bolt D/F-BSW 1/2" for reliability and safety in all your heavy-duty applications, ensuring peace of mind for your projects!
Bullivants Eye Bolt D/F-BSW 1/2" 0.40T WLL (Each)
Grade 4 Imperial Eyebolt
BSW Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

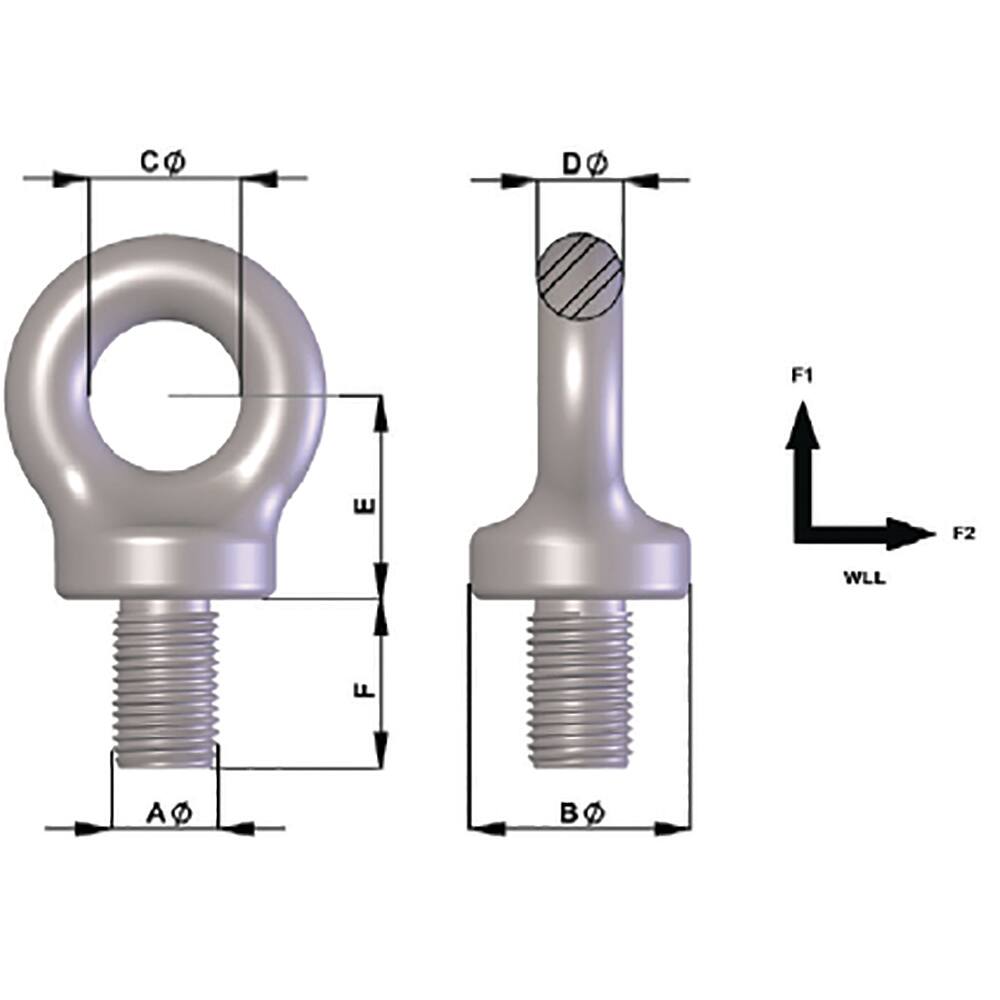

TECHNICAL SPECIFICATIONS
A (") 1/2
WLL F1 (t) 0.40
WLL F2 (t) 0.10
B (mm) 28
C (mm) 18
D (mm) 11
F (mm) 21
Threads Per Inch 12
Bullivants Eye Bolt D/F-BSW 1/2" 0.40T WLL (Each)
Grade 4 Imperial Eyebolt
BSW Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ
TECHNICAL SPECIFICATIONS
A (") 1/2
WLL F1 (t) 0.40
WLL F2 (t) 0.10
B (mm) 28
C (mm) 18
D (mm) 11
F (mm) 21
Threads Per Inch 12
