BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT, IR 1

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX + FRONT, IR 1080 HD DASHCAM 64 GB

BlackVue DR770X Box-3CH Pro features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

What's Included?

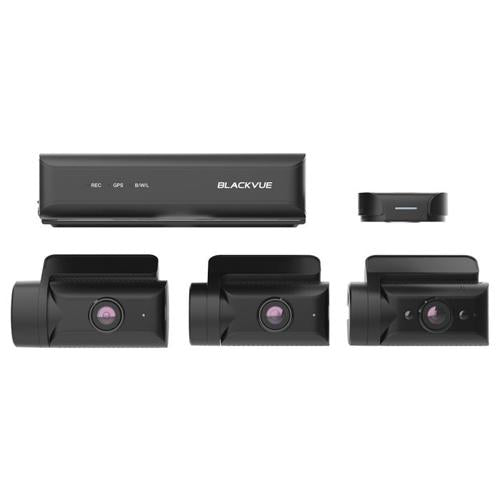

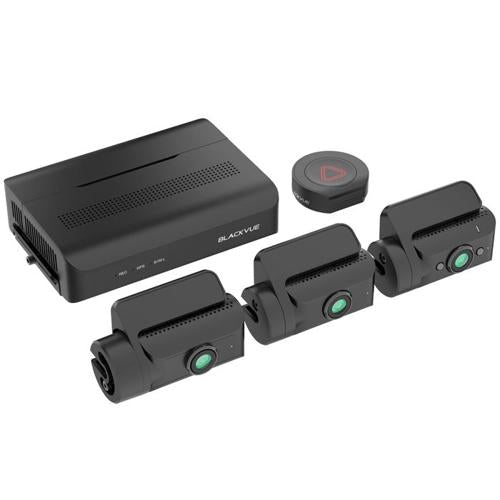

• Main Unit
• Front Camera
• Rear Camera
• Rear Infrared Camera
• SOS Button
• Main unit cigarette lighter power cable (4.5M)
• Main unit hard wiring power cable (4.5m)
• Camera connection cable (6m, 3EA)
• Micro SD with Card Reader
• Quick start Guide
• Mounting Tape and Main unit key

Specifications
Model Name DR770X Box-3CH Pro
Channel
3CH

Highlights
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module

Product Dimensions
Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
Interior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

Rear Camera Connection
Coaxial cable

Memory Support
microSD card up to 512GB

Recording Modes
Normal recording, Event recording (when the impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Imaging Sensor
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)



Viewing Angle
Front(FC1) : Diagonal 139°
