BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX DMS SYSTEM 10

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM WITH CENTRAL RECORD BOX DMS SYSTEM 1080 HD DASHCAM 64 GB

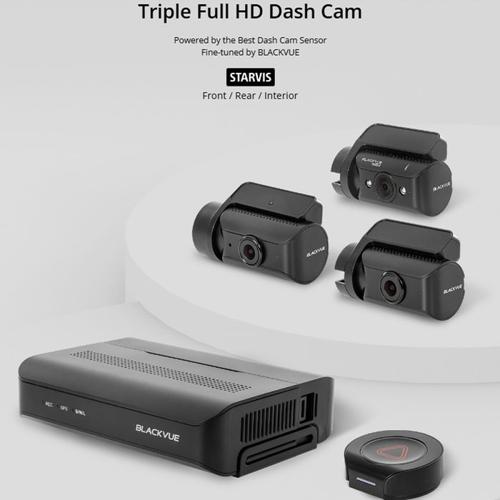

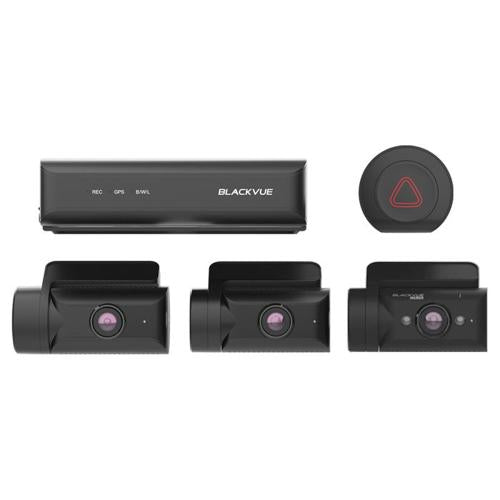

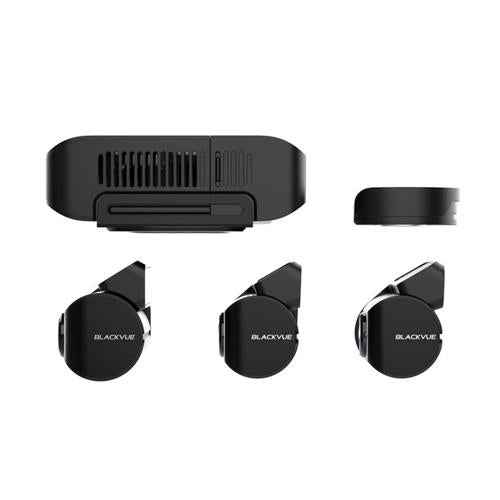

BlackVue DR770X Box-3CH DMS Pro combines triple camera protection and AI-powered Driver Monitoring System. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

Model Name DR770X Box-3CH DMS Pro
Channel 3CH
Highlights Full HD + Full HD + Full HD (Front + Rear + DMS), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
DMS : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
EB-1(Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 512GB
Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode YES (hardwiring cable included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front : STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear : STARVIS CMOS Sensor (Approx. 2.1 M Pixel) DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
DMS(RC1-DMS-C) : Diagonal 109°, Horizontal 94°, Vertical 52°
Resolution Frame Rate Front / Rear / DMS
Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi
