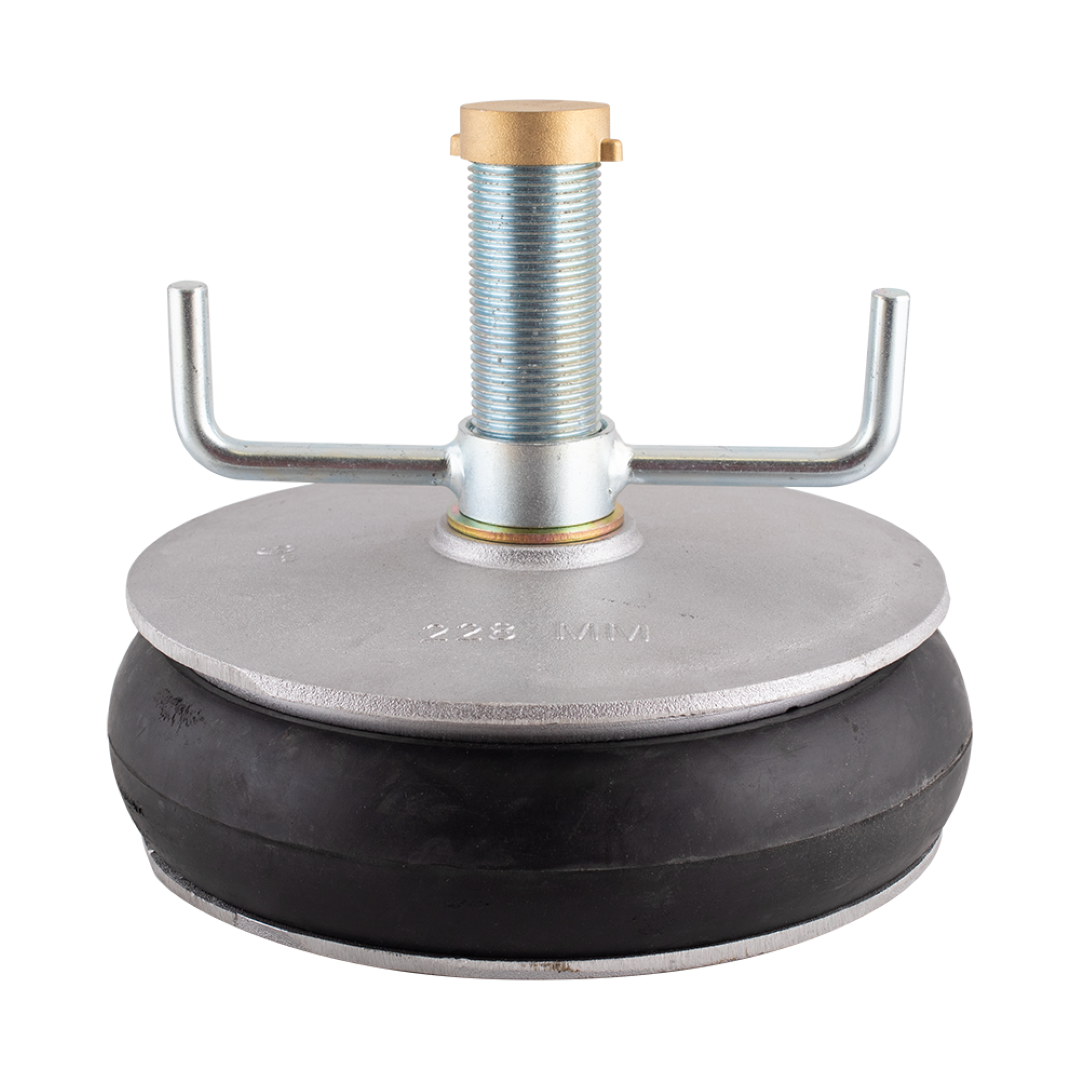

BAILEY 225mm Aluminium Drain Test Plug

Introducing the BAILEY 225mm Aluminium Drain Test Plug, your essential tool for efficient drain and sewer pressure testing. Crafted from high-quality aluminium, this robust drain test plug features a strong rubber ring that can expand to fit tightly inside various pipe sizes. Whether you require temporary or permanent pipe closure, this versatile drain plug is designed with reliability in mind. With a diameter of 225mm (9 inches) and a BSP outlet size of 1 inch, it’s perfect for a wide range of plumbing applications. Its impressive operating range of 216 - 235mm ensures a snug fit in most standard drains and sewers. This drain testing plug is not only perfect for pressure testing but also renowned for its reusability, making it an economical choice for plumbing professionals and DIY enthusiasts alike.

Bailey Products has earned a reputation for excellence in manufacturing drain testing and stopping plugs, and the quality of our products is recognized as the highest standard in the industry. Using the BAILEY 225mm Drain Test Plug is simple: Insert the plug into the pipe end and tighten the wing nut of the central screw, pulling the farthest plate toward the front plate to push the rubber seal against the pipe wall and create a perfect seal. The integrated hollow screw allows for easy connection of test hoses.

Features:
- Ideal for pressure testing of drain and sewer pipes.
- Suitable for temporary or permanent pipe closure.
- Designed for durability; robust and reusable.
- Recognized for superior quality.

Specifications:
- Diameter: 225mm (9 inches)
- BSP Outlet Size: 1 inch
- Operating Range: 216 - 235mm
- Max PSI: 7
- Wingnut Material: Steel
- Cap Material: Brass
- Weight: 1800g

Elevate your plumbing projects with the BAILEY 225mm Aluminium Drain Test Plug, available now at Smartfox NZ!

These Bailey centre locking drain testing plugs have a high-quality aluminium body and a  strong rubber ring that can be expanded to fit tightly inside pipes for  drain and sewer pressure testing.  It can also be used as a temporary or permanent pipe closure.  Bailey Products are a leading manufacturer of a wide range of testing/stopping plugs. The quality of our products are widely recognised as being of the highest standard.
How to use:
When inserted into the pipe end, tightening the wing nut of the central screw draws the farthest plate toward the front plate, pushing the rubber seal against the pipe wall to form a seal. The hollow screw can then be used as the test hose connector.


Features:
For pressure testing of drain and sewer pipes.
To form a temporary or permanent pipe closure.
Robust product that can be re-used.
Quality is recognized as the highest standard.


Specifications:
Diameter: 225mm (9")
BSP Outlet Size: 1"ť
Operating Range: 216 - 235mm
PSI: 7
Wingnut Material: Steel
Cap Material: Brass
Weight: 1800g
