SKU:
PR812184

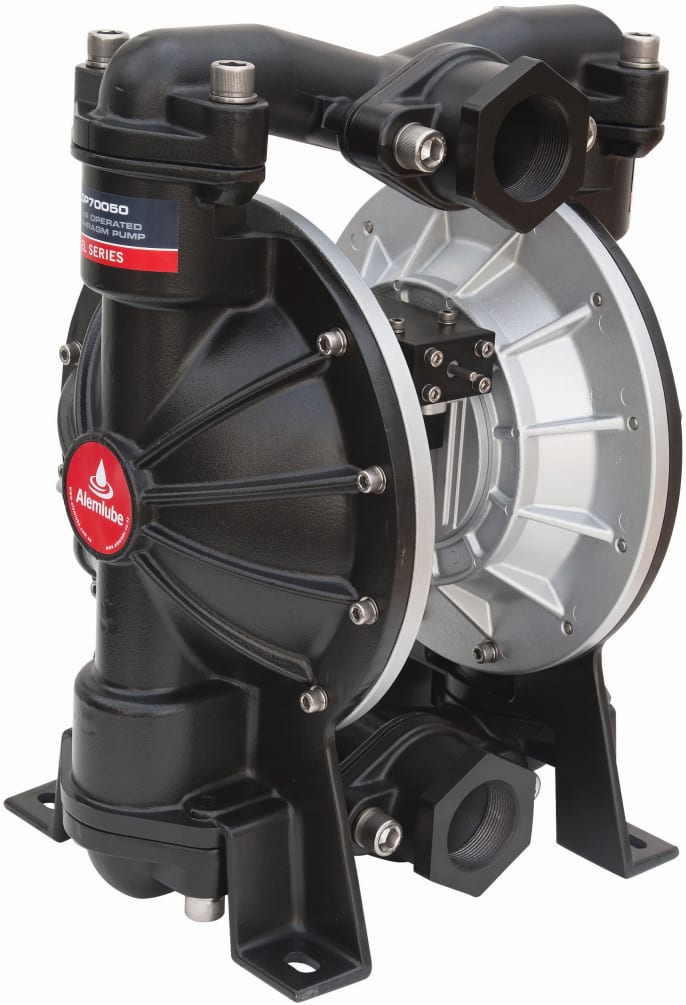

Alemlube EL Series Air-Operated Diaphragm Pump
$11,410.00
Unit price
/
Unavailable
Alemlube EL Series Air-Operated Diaphragm Pump
1-1/2" air-operated diaphragm pump
EL SeriesFlow rates of up to 340 L/min
Max. working pressure of 120psi
Max. delivery per cycle of 1.45L
Max. air consumption of 2400 L/min
Max. solid diameter of 6mm
-1/2" BSP (f) fluid inlet and outlet
1/2" BSP (f) air inletBody:
Aluminium Diaphragm
UPE Ball Valve
Teflon Ball Cover
TECHNICAL SPECIFICATIONS
Dimensions
368mm (W) x 266mm (D) x 436mm (H)
Aluminium Weight
16kg
Mfr No
DP70040
1-1/2" air-operated diaphragm pump
EL SeriesFlow rates of up to 340 L/min
Max. working pressure of 120psi
Max. delivery per cycle of 1.45L
Max. air consumption of 2400 L/min
Max. solid diameter of 6mm
-1/2" BSP (f) fluid inlet and outlet
1/2" BSP (f) air inletBody:
Aluminium Diaphragm
UPE Ball Valve
Teflon Ball Cover
TECHNICAL SPECIFICATIONS
Dimensions
368mm (W) x 266mm (D) x 436mm (H)
Aluminium Weight
16kg
Mfr No
DP70040
