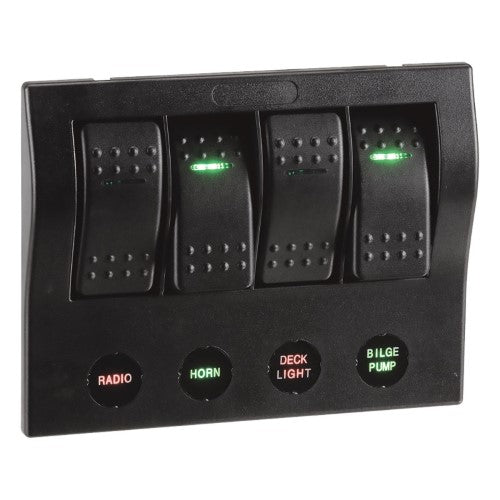

4-Way LED Switch Panel with Circuit Breaker Protection - Narva

Enhance your vehicle's lighting and accessory management with our premium 4-Way LED Switch Panel with Circuit Breaker Protection, designed to deliver superior performance for RVs, boats, and more. With a robust amperage rating of 20A at 12V and 10A at 24V, this switch panel ensures efficient power distribution while protecting your circuit with built-in breakers. Measuring 130 x 100mm, it features three Off/On switches and one Momentary switch, making it a versatile choice for any configuration. The LED indicators not only enhance usability but also add a modern touch to your dashboard; they illuminate green when 'On' and red when 'Off', allowing for easy monitoring in low-light conditions. Additionally, this switch panel comes equipped with a 60-piece symbol set tailored for RV and marine applications, enabling you to customize your setup easily. Easy to install with mounting openings of 108 x 83mm, this NARVA-branded switch panel is perfect for those looking for reliability and style in a compact design. Invest in safety and functionality with our 4-Way LED Switch Panel, the ideal solution for all your electrical needs in automotive, marine, and recreational settings.

SPST, ‘On’ illumination
Technical Information:
CURRENT DRAW - Amperage rating 20A at 12V, 10A at 24V
LEDs - 38
Mounting openings - 108 x 83mm
Overall Panel Dimensions - 130 x 100mm
Circuit Breakers - 2 x 10A (P/No. 55310) 2 x 15A (P/No. 55315)

Product Comprises of:
1. 3 Off/On switches and 1 Momentary (On) switch.
2. Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.
3. 60 piece symbol set for RV and Marine applications.
Brand:NARVA
