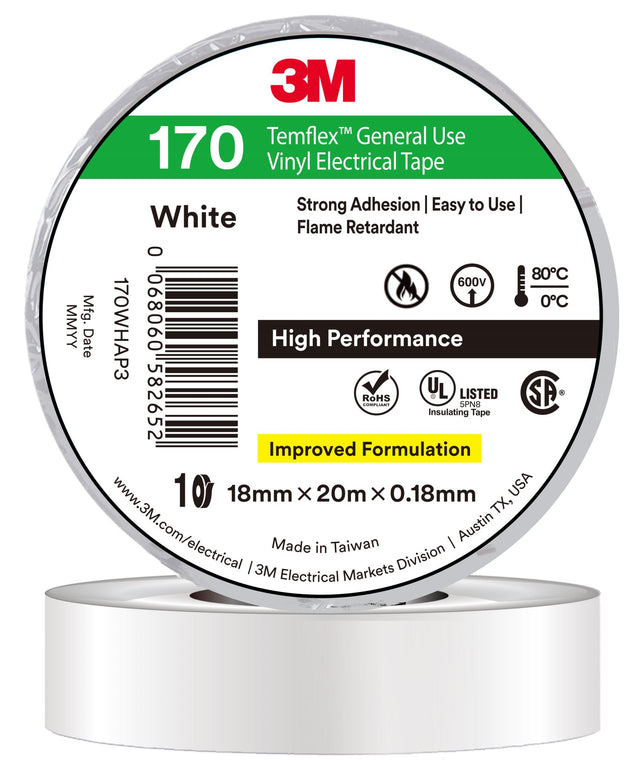

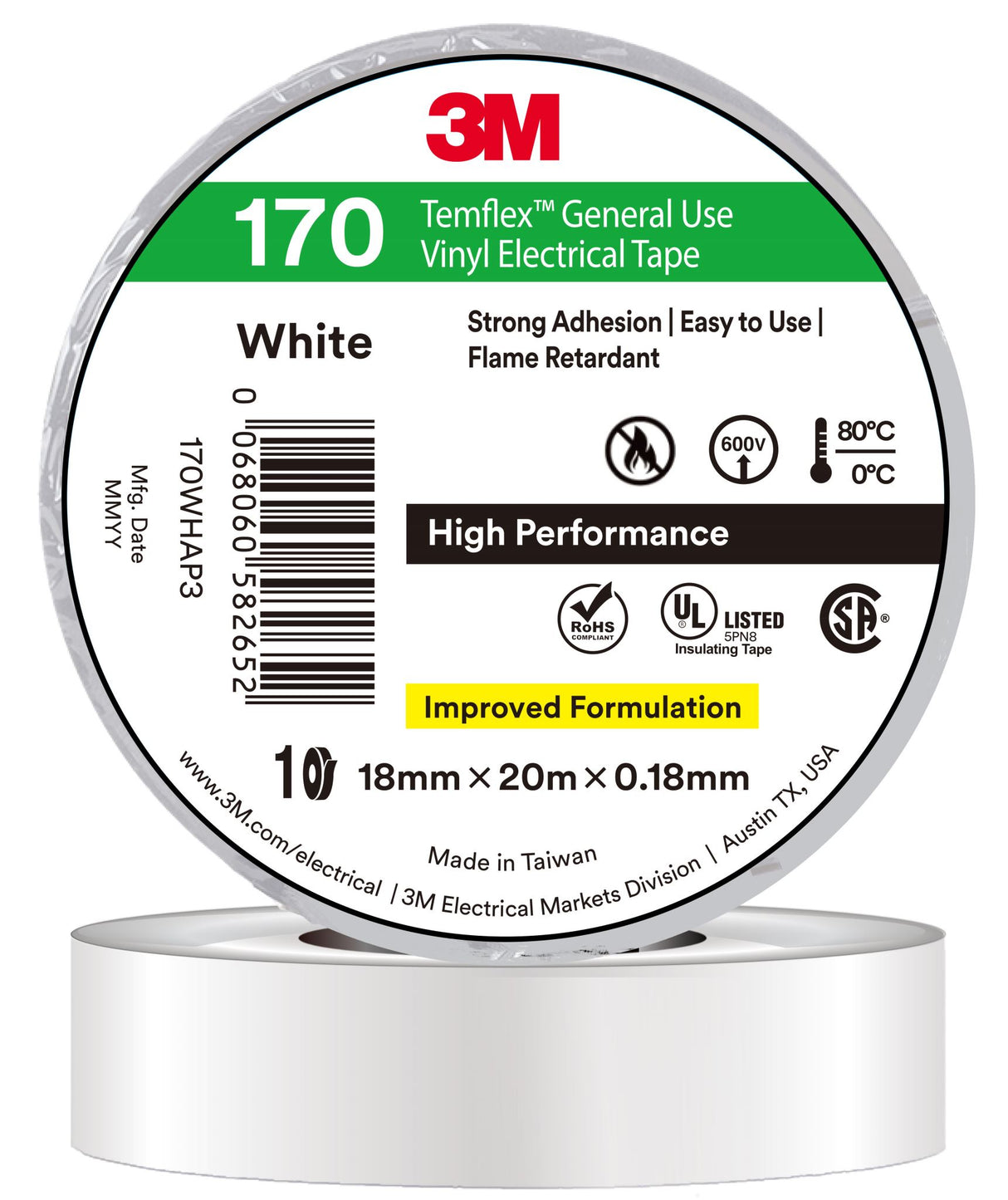

3M Temflex Vinyl Electrical Tape 170 White-18mm x 20m (Roll)
$5.90
$6.95
Unit price
/
Unavailable
Introducing the 3M Temflex Vinyl Electrical Tape 170 in pristine white—your go-to solution for high-performance electrical insulation. Measuring 18mm in width and 20m in length, this premium electrical tape is crafted from a durable, 0.18mm thick elastic vinyl (PVC) film, making it perfect for a variety of applications. Designed with a non-corrosive, pressure-sensitive adhesive, it offers superior sealing and bonding capabilities, ensuring long-lasting performance. With a remarkable temperature resistance range from -10 to 80 degrees Celsius (CSA C22.2 No.197) and up to 80 degrees Celsius (UL510), this tape can withstand tough environments, making it ideal for both domestic and industrial use. The 3M Temflex tape is also flame retardant according to UL510 standards, providing an extra layer of safety in electrical projects. Not just functional, its vibrant white color makes it effective for marking safety areas and phase coding. Suitable as primary insulation for applications up to 600V, this tape adheres to NFPA guidelines for wire and cable splices, ensuring reliability you can trust. Use 3M Temflex Vinyl Electrical Tape 170 for all your electrical needs and experience the blend of quality and efficiency. Whether you're a DIY enthusiast or a professional electrician, upgrading your toolkit with this essential item will make all the difference.
3M Temflex Vinyl Electrical Tape 170 White-18mm x 20m (Roll)
3M Temflex Vinyl Electrical Tape 170 is a high performance, general use grade, nominal 0.18 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
Temperature Resistance (UL510): 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197): -10 to 80 degrees C
Flame retardant to UL510
Vibrant colours for the effective marking of safety areas and equipment and phase coding
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80 degrees C and min temperature of 0 degrees C on joints and splices in wires and cables in accordance with NFPA
TECHNICAL SPECIFICATIONS
Thickness 0.18mm
Flame retardant (UL510) Yes
Temperature Resistance (UL510) 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197) -10 to 80 degrees C
Mfr No AE019500832
3M Temflex Vinyl Electrical Tape 170 White-18mm x 20m (Roll)
3M Temflex Vinyl Electrical Tape 170 is a high performance, general use grade, nominal 0.18 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
Temperature Resistance (UL510): 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197): -10 to 80 degrees C
Flame retardant to UL510
Vibrant colours for the effective marking of safety areas and equipment and phase coding
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80 degrees C and min temperature of 0 degrees C on joints and splices in wires and cables in accordance with NFPA
TECHNICAL SPECIFICATIONS
Thickness 0.18mm
Flame retardant (UL510) Yes
Temperature Resistance (UL510) 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197) -10 to 80 degrees C
Mfr No AE019500832
