SKU:
PR800903

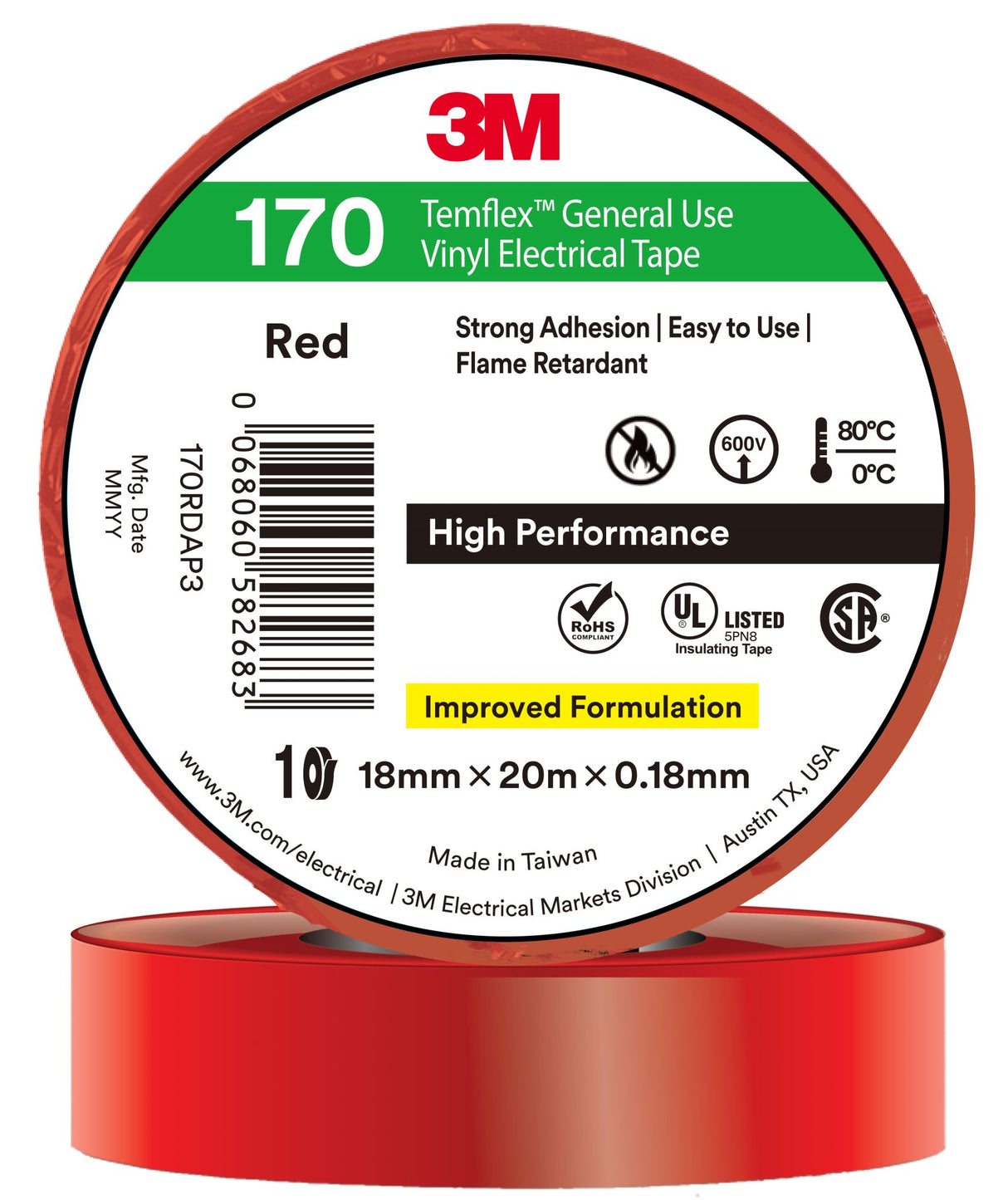

3M Temflex Vinyl Electrical Tape 170 Red-18mm x 20m (Roll)
$6.95
Unit price
/
Unavailable
Introducing the 3M Temflex Vinyl Electrical Tape 170 Red, a must-have for electricians and DIY enthusiasts alike. This high-performance electrical insulating tape is designed for a myriad of applications, ensuring safety and longevity. Measuring 18mm wide and with a generous length of 20m, it’s perfect for use in homes, offices, and industrial settings. Crafted from 0.18mm thick elastic vinyl (PVC), this tape features a non-corrosive, pressure-sensitive adhesive, ensuring a secure bond and reliable performance. With its impressive temperature resistance ranging from -10 to 80 degrees Celsius (as defined by CSA C22.2 No.197) and 0 to 80 degrees Celsius (in compliance with UL510), you can trust that this electrical tape will perform in a variety of conditions, making it suitable for primary insulation on applications up to 600V. The vibrant red color aids in effective marking of safety areas, equipment, and phase coding, enhancing visibility where it’s most needed. Flame retardant to UL510 standards, the 3M Temflex Vinyl Electrical Tape meets industry safety requirements while providing both durability and flexibility. Ideal for electrical joints, splices in wires, and cables, this tape is a staple for any toolbox. Experience the reliability that comes with 3M and upgrade your electrical projects today with the 3M Temflex Vinyl Electrical Tape 170 Red, available at Smartfox NZ.
3M Temflex Vinyl Electrical Tape 170 Red-18mm x 20m (Roll)
3M Temflex Vinyl Electrical Tape 170 is a high performance, general use grade, nominal 0.18 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
Temperature Resistance (UL510): 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197): -10 to 80 degrees C
Flame retardant to UL510
Vibrant colours for the effective marking of safety areas and equipment and phase coding
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80 degrees C and min temperature of 0 degrees C on joints and splices in wires and cables in accordance with NFPA
TECHNICAL SPECIFICATIONS
Thickness 0.18mm
Flame retardant (UL510) Yes
Temperature Resistance (UL510) 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197) -10 to 80 degrees C
Mfr No AE019500816
3M Temflex Vinyl Electrical Tape 170 Red-18mm x 20m (Roll)
3M Temflex Vinyl Electrical Tape 170 is a high performance, general use grade, nominal 0.18 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
Temperature Resistance (UL510): 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197): -10 to 80 degrees C
Flame retardant to UL510
Vibrant colours for the effective marking of safety areas and equipment and phase coding
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80 degrees C and min temperature of 0 degrees C on joints and splices in wires and cables in accordance with NFPA
TECHNICAL SPECIFICATIONS
Thickness 0.18mm
Flame retardant (UL510) Yes
Temperature Resistance (UL510) 0 to 80 degrees C
Temperature Resistance (CSA C22.2 No.197) -10 to 80 degrees C
Mfr No AE019500816
