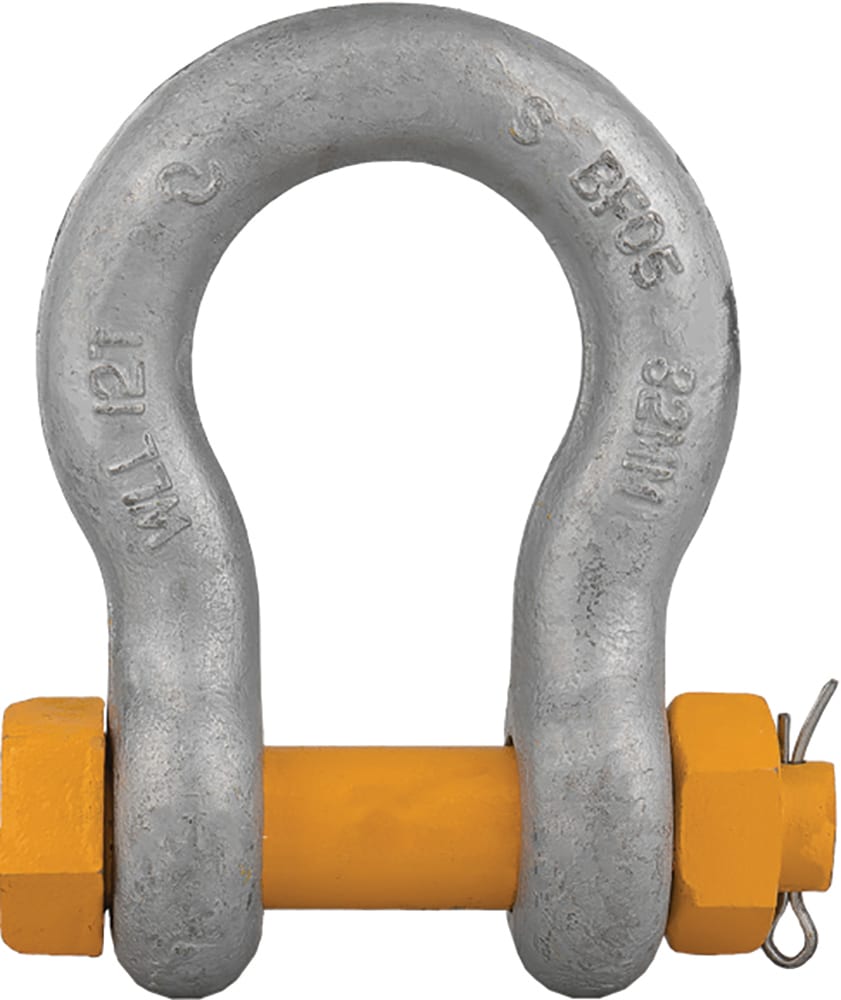

Bullivants Safety Bow Shackle 9.5T (Each)

Introducing the Bullivants Safety Bow Shackle 9.5T, the ultimate solution for your lifting and rigging needs. Engineered for superior strength, this bow shackle is perfect for making two direct connections to your loads. Designed with a safety pin mechanism, it offers unrivaled load security, making it ideal for permanent and long-term applications, especially in environments subject to vibration or movement. The Bullivants Safety Bow Shackle is exceptionally versatile, suitable for various lifting tasks when used alongside chains, wire ropes, or synthetic slings. Each shackle is individually stamped with its Working Load Limit (WLL) of 9.5 tonnes, ensuring you know the exact capacity you are working with. This bow shackle complies with AS 2741:2002 regulations, guaranteeing its quality and safety for all industrial applications. Constructed from Alloy Grade S and galvanised for enhanced durability, this bow shackle is resistant to corrosion and wear. With dimensions of 29mm (d), 32mm (D), 46mm (W), 74mm (B), 108mm (L), and 67mm (e), it’s compact yet robust enough for your heavy-duty lifting tasks. Invest in safety and reliability with the Bullivants Safety Bow Shackle 9.5T, your go-to choice for lifting equipment that won't let you down. (Image for representation purposes only; actual product may differ).

Bullivants Safety Bow Shackle 9.5T
Bow shackle suitable for 2 direct connections to the load
Safety pin shackle for use where greater load security is required in permanent and long term applications and where vibration or movement of the load may occur
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ

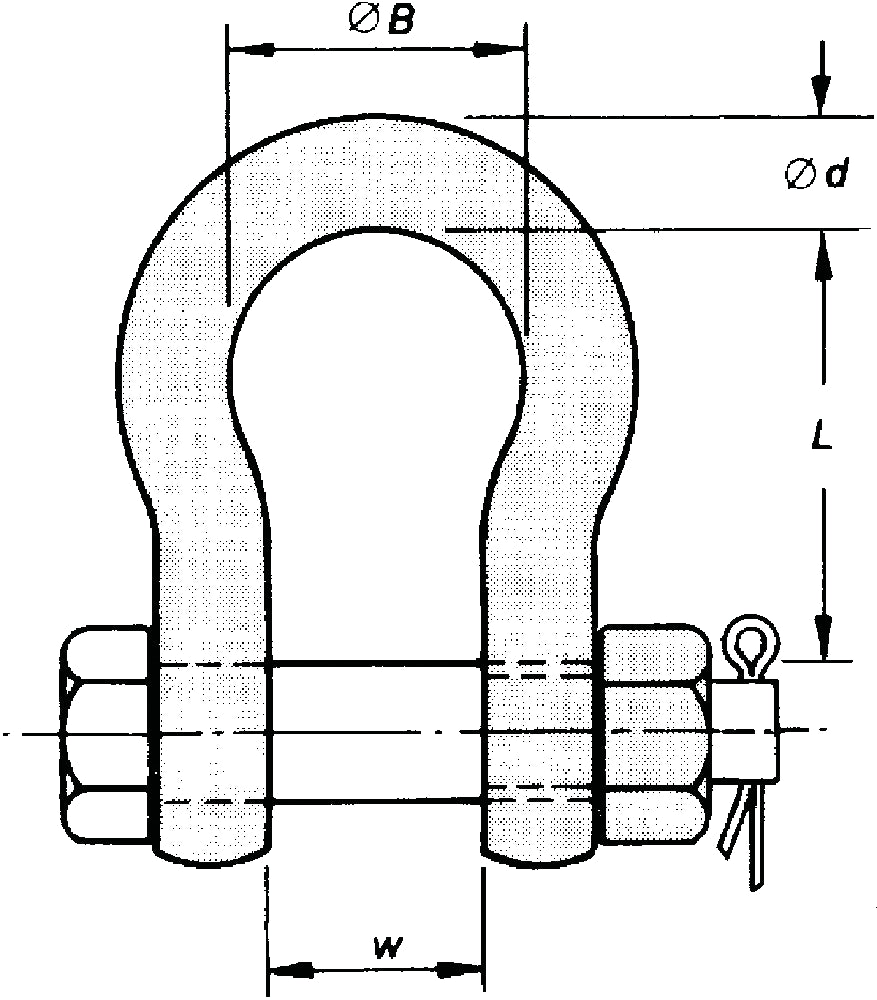

TECHNICAL SPECIFICATIONS
Material Alloy Grade S Galvanised
WLL 9.50t
d 29mm
D 32mm
W 46mm
B 74mm
L 108mm

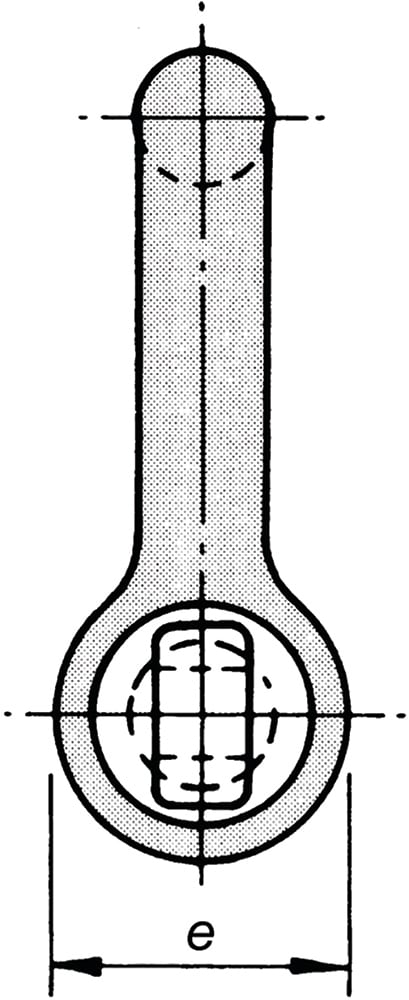

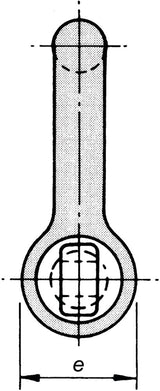

e 67mm
