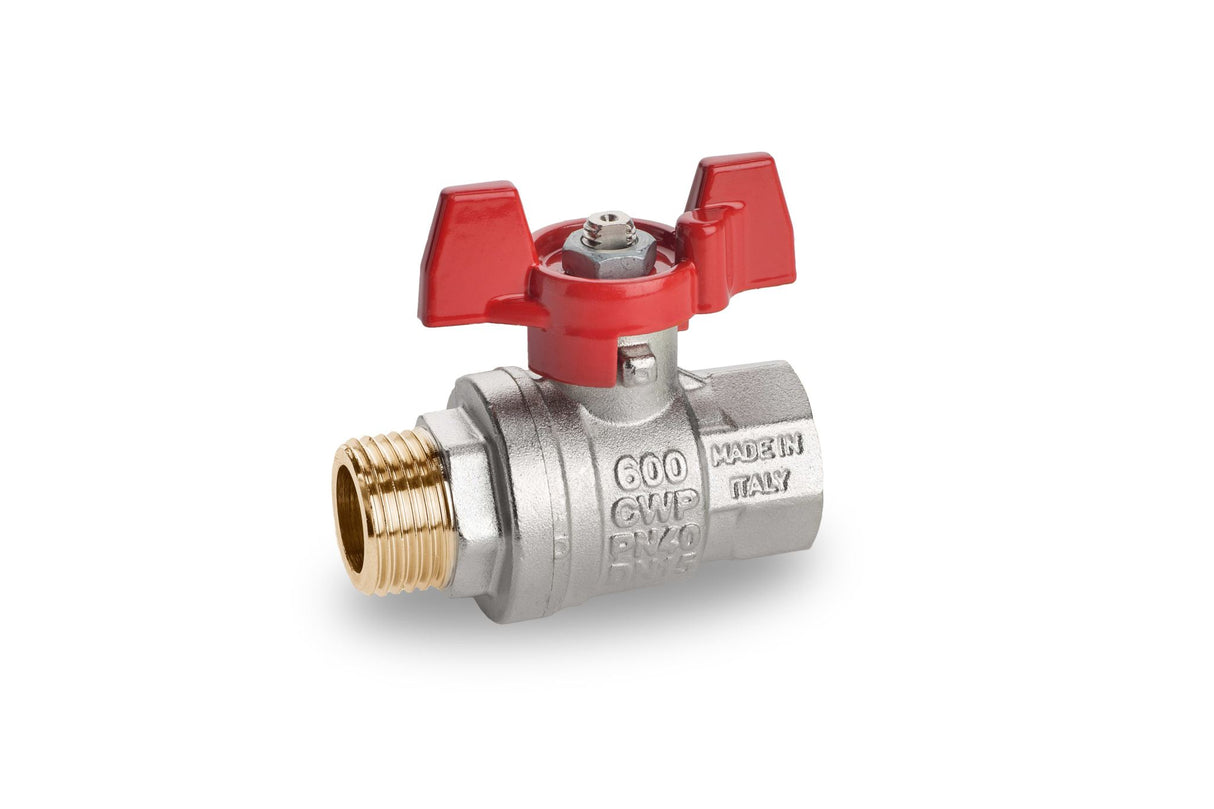

RuB s.90 Brass Ball Valve with T-handle 20mm BSPP

Introducing the RuB s.90 Brass Ball Valve with T-handle - 20mm BSPP, your go-to solution for efficient fluid control in various industrial applications. This premium brass ball valve features a robust dual sealing system, enabling seamless operation in either direction and simplifying installation. With no metal-to-metal moving parts, you can expect durability and reliability, reducing the risk of wear and tear. The intuitive T-handle design clearly indicates the ball position, ensuring maximum control over your flow of fluids.

Constructed from high-quality brass according to EN 12165 and EN 12164 specifications, this valve boasts a blowout-proof nickel plated brass stem for enhanced safety. Thanks to its maintenance-free design, featuring double FPM O-rings at the stem, you can enjoy peace of mind knowing your system is secure.

The pure PTFE self-lubricating seats with a flexible-lip design provide exceptional sealing performance, while the ISO 228 parallel male by female threads ensure a perfect fit for your piping needs. The full port design to DIN 3357 promotes maximum flow efficiency, making it ideal for demanding applications.

Technical Specifications:
- Manufacturer No. S90E26
- Size: 20mm (3/4 inches)
- Thread: Male x Female BSPP
- Handle Type: T-handle
- Working Pressure (non-shock cold): 40 bar (600 psi)
- Temperature Range: -40°C to +170°C (-40°F to +350°F)

Choose the RuB s.90 Brass Ball Valve with T-handle for a reliable and efficient solution for all your fluid control needs. Shop now at Smartfox NZ for quality you can trust!

Ball valves are commonly used in a wide range of industrial applications for controlling the flow of fluids.
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
T-handle clearly shows ball position
Brass according to EN 12165 and EN 12164 specifications
Blowout-proof nickel plated brass stem
Maintenance-free, double FPM O-rings at the stem for maximum safety
Pure PTFE self-lubricating seats with flexible-lip design
ISO 228 parallel male by female threads
Full port to DIN 3357 for maximum flow
Aluminum T-handle

TECHNICAL SPECIFICATIONS
Mfr No. S90E26
Size 20mm (3/4")
Thread Male x Female BSPP
Handle Type T-handle
Working Pressure (non-shock cold) 40 bar (600 psi)
Temperature Range -40C to +170C (-40F to +350F)
