SKU:
PR1099254

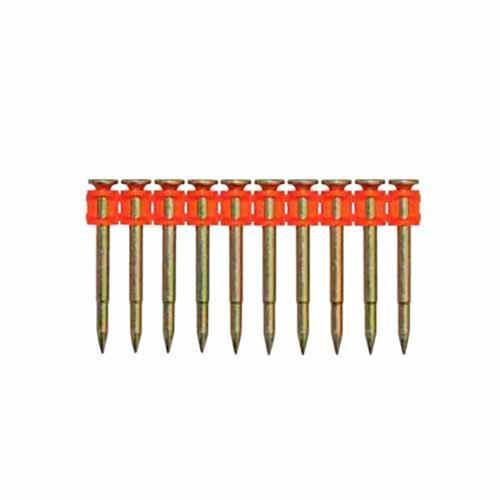

Ramset Collated Drive Pins 60mm Pack of 300
$529.00
Unit price
/
Unavailable
Designed for use with the FrameBoss magazine for fastening to steel and hard concrete applications. The design of these drive pins allows them to penetrate hard materials with less power while the strengthened shank greatly reduces the possibility of column collapse.
Length: 60mm
Max
fixture thickness to steel: 45mm
Max
fixture thickness to concrete: 35mm
Raw material: carbon steel
Corrosion protection: zinc plated
Nominal head diameter: 8.8mm
Nominal shank diameter: 4.0mm/3.7mm
Shear strength: 1240N/mm2
Tensile strength: 2000N/mm2
Hardness: 54-58HRc
Length: 60mm
Max
fixture thickness to steel: 45mm
Max
fixture thickness to concrete: 35mm
Raw material: carbon steel
Corrosion protection: zinc plated
Nominal head diameter: 8.8mm
Nominal shank diameter: 4.0mm/3.7mm
Shear strength: 1240N/mm2
Tensile strength: 2000N/mm2
Hardness: 54-58HRc
