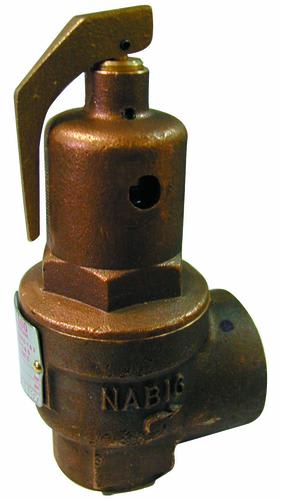

Nabic Fig Lift 500 Safety Relief Valve 15mm
$1,802.00
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Nabic Fig Lift 500 Safety Relief Valve 15mm
The Fig 500 Nabic High Lift Safety valve has been designed primarily for use on unvented hot water heating systems, where a high capacity, emergency steam relief capacity is required. High capacity and resilient PTFE seating makes these valves ideal or steam, air and inert gas applications. All wetted parts are manufactured from dezincification resistant materials approved by the UK Water Research Centre for use on potable water. UKWFBS listed. Designed and tested to BS 6759.
Body Materials: Gunmetal
Ends: Screwed BSP
Seat Materials: PTFE
Temperature Range: Up to 195°C.
Comes pre-set to a max working pressure of 119psi
Other pressures between 5-180psi are available on request. Please contact our Technical Solutions team for more information
TECHNICAL SPECIFICATIONS
Brand/ model
Nabic Model Fig 500
Nominal Size
15mm
Set Pressure range PSI
90-119
Nabic Fig Lift 500 Safety Relief Valve 15mm
The Fig 500 Nabic High Lift Safety valve has been designed primarily for use on unvented hot water heating systems, where a high capacity, emergency steam relief capacity is required. High capacity and resilient PTFE seating makes these valves ideal or steam, air and inert gas applications. All wetted parts are manufactured from dezincification resistant materials approved by the UK Water Research Centre for use on potable water. UKWFBS listed. Designed and tested to BS 6759.
Body Materials: Gunmetal
Ends: Screwed BSP
Seat Materials: PTFE
Temperature Range: Up to 195°C.
Comes pre-set to a max working pressure of 119psi
Other pressures between 5-180psi are available on request. Please contact our Technical Solutions team for more information
TECHNICAL SPECIFICATIONS
Brand/ model
Nabic Model Fig 500
Nominal Size
15mm
Set Pressure range PSI
90-119
