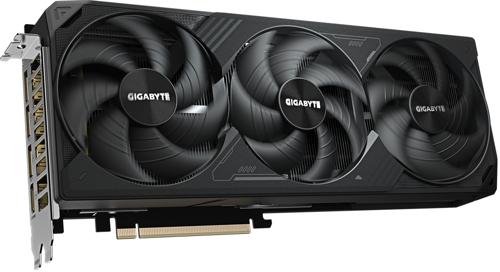

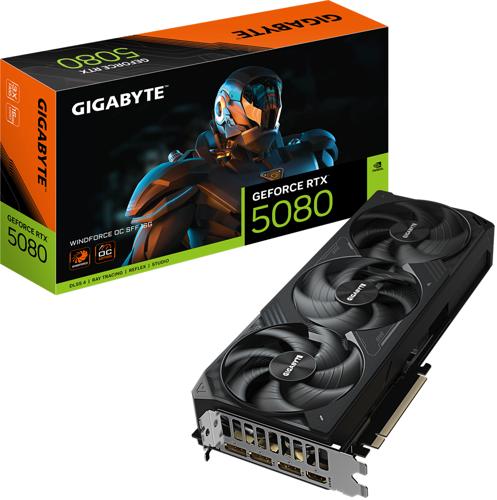

Gigabyte GV-N5080WF3OC-16GD RTX5080 16GB GDDR6X PCIE Graphics Card

The Gigabyte RTX 5080 Windforce OC graphics card, powered by NVIDIA's Blackwell architecture and DLSS 4, features 16GB GDDR7 memory and a 2670MHz core clock. Its WINDFORCE cooling system, with Hawk fans and server-grade thermal gel, ensures optimal performance. The card also boasts dual BIOS, NVIDIA SFF-ready design, reinforced structure, and a versatile VGA holder for enhanced stability and customization.

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5080
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder

Graphics Processing
GeForce RTX™ 5080

Core Clock
2670 MHz (Reference: 2617 MHz)

CUDA Cores
TBD

Memory Clock
30 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-view
4

Card Size (mm)
340 (L) x 126 (W) x 50 (H)

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
850W

Power Connectors
1x 16 Pin

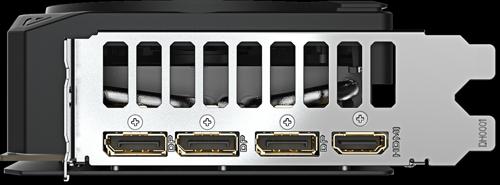

Output
3x DisplayPort 1x HDMI
