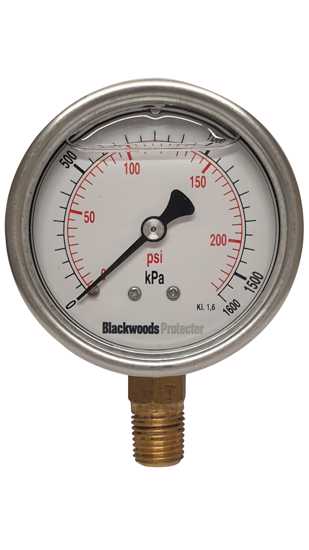

Gauges Pressure SS- 1/4" BSP-Bottom- 0/ 1600 kPa (Each)

Introducing our top-of-the-line SS-1/4" BSP-Bottom Pressure Gauge, designed for precision in measuring pressure levels from 0 to 1600 kPa. This 63mm stainless steel pressure gauge is engineered with a robust SS grade 304 case, ensuring durability even in the harshest environments. Its high-quality construction includes a copper alloy bourdon tube and socket, providing reliability and accuracy of +/- 1.6%. The glycerine-filled case minimizes vibrations and pulsations, extending the lifespan of the gauge and improving readability in dynamic conditions. Ideal for hydraulic systems, mining operations, and irrigation management, this pressure gauge is an essential tool for professionals seeking quality and accuracy in their equipment. The plexiglass window and neoprene seal protect against corrosive elements, making it suitable for various industrial applications. With an ambient temperature range of -25°C to 65°C, our pressure gauge is perfect for heavy-duty service. Upgrade your monitoring solutions with this dependable and resilient pressure gauge from Smartfox NZ today!

63mm stainless steel case pressure gauges are robust industrial quality enclosed within a stainless steel grade 304 case and bezel. Plexi glass window and neoprene seal. Designed for heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail.
Copper alloy bourdon and socket.
Accuracy +/- 1.6%
Ambient temperature: -25 C to 65 C
Specific application examples are hydraulic plant, mining and irrigation equipment.

TECHNICAL SPECIFICATIONS
Brand/ Model Gauges Pressure
Pressure Min & Max 0 & 1600
Scale Type kPa- Dual
Glycerine Filled
Case Dia(mm) 63
Stem Mount Entry Bottom
Connection 1/4" BSP
