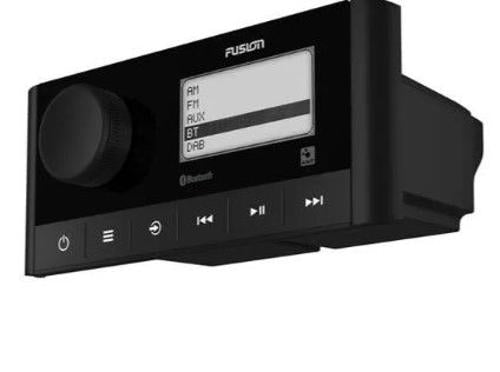

FUSION MARINE STEREO MS-RA60

FUSION MARINE STEREO MS-RA60

MODERN, COMPACT AND ECONOMICAL
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.

• Bonded LCD improves durability and protection against condensation and fogging.
• Built-in Class-D amplifier delivers higher efficiency and greater output.
• Enjoy convenient over-the-air software updates via Bluetooth® technology from the Fusion-Link™ app
• Multi-Zone Technology gives you control of two separate audio zones
• Control your music from your compatible smart device or Garmin watch.


General
DIMENSION 6.18" x 2.68" x 4.06" (156 x 68 x 103.2 mm)
DISPLAY 2.3" perimeter bonded monochrome LCD
WEIGHT 0.7 lbs (316 g)
WATER RATING IPX6 and IPX7 (front panel only, when properly installed)
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
CURRENT (MAX) 15 A

Networking
BLUETOOTH® WIRELESS RANGE up to 30 ft (10 meters)
ANT® WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal

Audio
AMPLIFIER Class-D (4 ohm)
Stereo Features
PEAK POWER 180 watts
RATED POWER OUTPUT (4 OHM) 22 watts RMS x 4 @ 14.4 V input < 10% THD
FUSION-LINK™ CONTROL yes (smart device and Garmin watch)
MULTI-ZONE™ TECHNOLOGY 2 zones
BLUETOOTH® WIRELESS TECHNOLOGY ??
ANT® WIRELESS TECHNOLOGY ??
DAB+ READY ??
MULTI-LANGUAGE INTERFACE
Dutch, English, French, German, Italian, Spanish
SOFTWARE UPDATES Over-the-air updates via Fusion-Link™ app
WARRANTY 1 year

Sources
SUPPORTED SOURCES
AM, FM, BLUETOOTH®, AUX x1
DAB+ (available in Europe and Australia only)

Connections
AUXILIARY INPUTS (RCA) 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
SPEAKER CONNECTIONS 4 (2 zone amplified)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) 1 zone (requires extern
