SKU:
PR700773

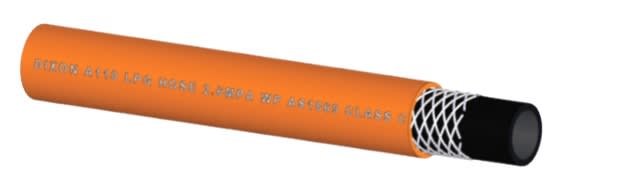

Dixon 10mm Rubber LPG GAS Hose (AS1869C) 10mm (Metres)
$18.40
Unit price
/
Unavailable
For conveying LPG in household and industrial applications. Used for gas cutting application.
Intended Service: Gas
Tube: NBR
Reinforcing: Polyester
Cover: PVC Orange
Standards: AS/NZS1869 Class C
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Inside Diameter
10mm
Outside Diameter
18mm
Working Pressure
375psi / 2.6Mpa
Burst Pressure PSI
1500 psi
Temperature Range
-20 C to 75 C
Max Bend Radius
120mm
Weight Kg/mtr
0.28
Intended Service: Gas
Tube: NBR
Reinforcing: Polyester
Cover: PVC Orange
Standards: AS/NZS1869 Class C
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Inside Diameter
10mm
Outside Diameter
18mm
Working Pressure
375psi / 2.6Mpa
Burst Pressure PSI
1500 psi
Temperature Range
-20 C to 75 C
Max Bend Radius
120mm
Weight Kg/mtr
0.28
