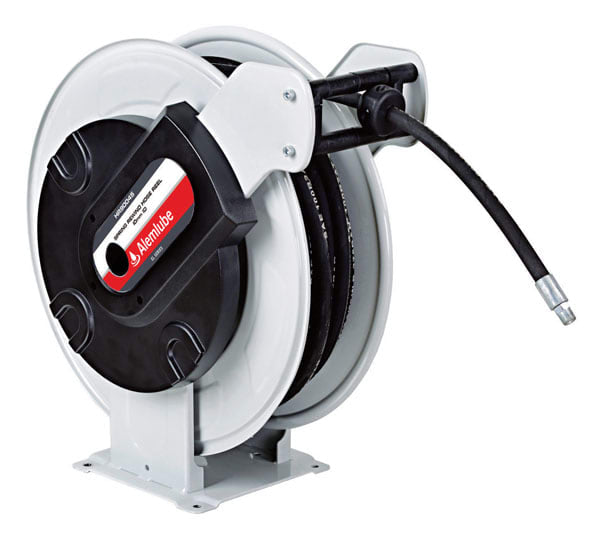

Alemlube EL Series Metal Air/Water Hose Reel 12mm x 25m (Each)

The EL Series HR90045 spring rewind hose reel is a low pressure reel suitable for diesel transfer and air or water applications in commercial vehicle workshops, food processing, bottling plants, manufacturing facilities, pulp and paper manufacturing, mine site workshops, service vehicles and the oil and gas industries.
Reinforced steel frame provides maximum strength and stability
Durable long lasting powder coated finish protects against the incidence of rust.
Can be mounted on the floor or wall
Reliable spring life of 20,000 cycles and positive ratchet lock design
1.5mm thick robust drum assembly with stiffening ribs and flange edges
Extends hose life and reduces hose replacement costs
Improves operator safety
Improves factory and workshop productivity
Fitted with 25m x 12mm ID rubber hose with hose stop and 1.2m leader hose

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
HR90045
Hose Size (ID x Length)
12mm x 25m
Application
Air/Water
Max. Working Pressure
300psi
Inlet/Outlet Size
1/2" BSP
Temperature Range
-20C to +60C
Leader Hose Length
1.2m
Dimensions (L x W x H)
584 x 276 x 573mm
