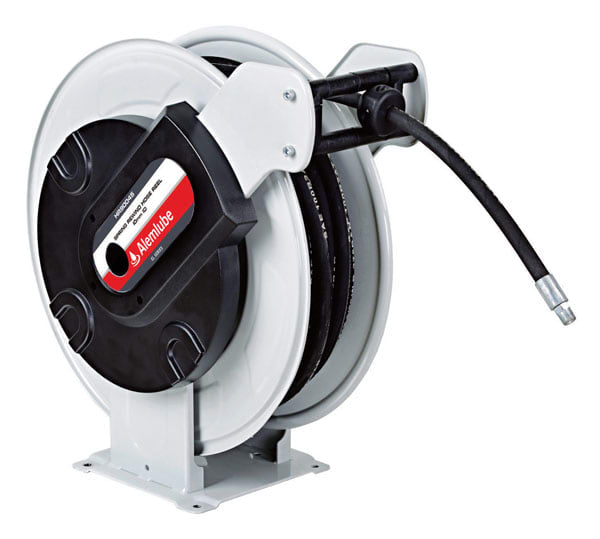

Alemlube EL Series Metal Oil/Fuel Hose Reel 3/4" x 20m (Each)

The EL Series HR90055 spring rewind hose reel is a low pressure reel suitable for oil, fuel and waste oil applications in commercial vehicle workshops, food processing, bottling plants, manufacturing facilities, pulp and paper manufacturing, mine site workshops, service vehicles and the oil and gas industries.
Reinforced steel frame for maximum strength, stability and durability
Durable, long lasting powdercoat finish
Can be floor, bench, wall or ceiling mounted
Reliable spring life of 20,000 cycles and positive ratchet lock design latches hose at predetermined positions
Dual pedestal construction ensures long working life
Extends hose life and reduces hose replacement costs
Improves operator safety
Improves factory and workshop productivity
Fitted with 20m x 3/4" ID SAE100R1AT hose with hose stop and 1.2m leader hose

TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No.
HR90055
Hose Size (ID x Length)
3/4" x 20m
Application
Oil/Fuel
Max. Working Pressure
1250psi
Inlet/Outlet Size
3/4"BSP
Temperature Range
-40C to +100C
Leader Hose Length
1.2m
Dimensions (L x W x H)
584 x 506 x 588mm
