Radio Control - ESC BL: MSC-30BL-WP

Elevate your RC experience with the MSC-30BL-WP, a high-performance Brushless Electronic Speed Controller (ESC) specifically designed for the Strada Red series of cars. This replacement brushless ESC not only enhances your vehicle’s power but also provides a seamless upgrade when paired with the MM - 22BL 3215KV Brushless Motor (#MV22602). Engineered for durability, this water-resistant and dust-proof ESC ensures reliable operation in various driving conditions. Choose between two running modes—'Forward with Brake' or 'Forward/Backward with Brake'—to suit your driving style. The ESC features a proportional ABS brake function with four adjustable maximum brake force levels and eight drag-brake force settings. Enjoy the versatility of four punch modes, customizable from 'Soft' to 'Very aggressive,' tailored for different chassis, tires, and tracks. Safety is paramount; the MSC-30BL-WP includes multiple protection features, including low voltage cut-off, over-heat protection, throttle signal loss protection, and motor block protection. Programming is a breeze with the easy-to-use 'SET' button. Please remember to maintain the ESC in optimal condition by removing the cooling fan in extremely wet environments and cleaning it post-use. Perfect for 1/10 scale on-road and off-road applications, this robust ESC has a continuous current rating of 45A and is compatible with both 2S and 3S LiPo batteries. Upgrade to the MSC-30BL-WP and experience unparalleled performance in your RC adventures!

Replacement Brushless ESC for the Strada Red series of cars

Can also be used to upgrade the standard Strada when used in conjunction with a Brushless Motor:
#MV22602 - MM - 22BL 3215KV Brushless Motor

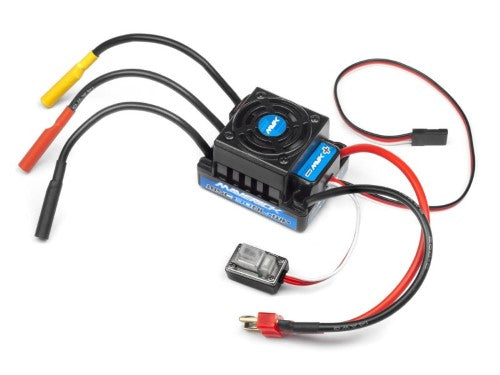

MSC-30BL-WP BRUSHLESS SPEED CONTROLLER
Features
Water-resistant* and dust-proof. The ESC has been designed to work in wet conditions.
2-3S Capable (for 3S you must change the standard 5V cooling fan to a 12V cooling fan, or supply the 5V cooling fan from the receiver 5-6V);
Compatible with sensorless brushless motor.
2 running modes (“Forward with brake” mode, “Forward/ Backward with brake” mode).
Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment.
4 Punch modes from “Soft” to “Very aggressive” to be suitable for different chassis, tires and tracks.
Multiple protection features: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
Easily programmed with the “SET” button
*Please remove the cooling fan when running the ESC very wet conditions.
*After running the ESC in wet conditions, please clean and dry it to avoid the oxidation to copper connectors

Specification
Continuous Current: 45A
Burst Current: 220A
Resistance: 0.0012 ohm
Application: 1/ 10 scale on-road and off-road
Motor Limit:
2S LiPo or 6 cells NiMH - On-road: ?9T, Off-road: ?12T, 3650 size motor
3S LiPo or 9 cells NiMH - On-road: ?12T, Off-road: ?18T, 3650 size motor
Battery: 4-9 Cells NiMH or 2-3S Lipo**
Built-in BEC: 6V/ 2A
Program Port: Multiplexed with cooling fan port
Motor Type: Sensorless Brushless
Dimension: 48.5 x 38 x 32mm
Weight (with wires): 90g
**1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5V cooling fan on the ESC;
**2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5V cooling fan to 12V cooling fan, or supply the 5V cooling fan from the receiver (5-6V);
