Description

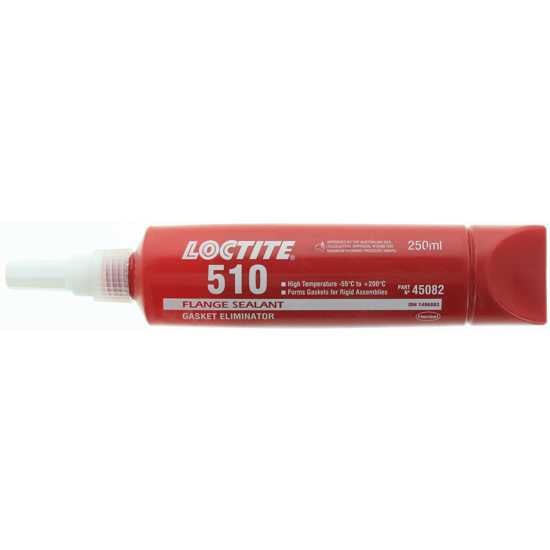

LOCTITE 510 is a high temperature resistant anaerobic sealant which cures when confined in the absence of air between close-fitting metal surfaces. Typical applications include sealing rigid flange faces on transmissions and motor casings. It ensures an instant, low-pressure seal.
High temperature resistant flange gasket
Recommended for rigid metal flanges
Adapts to flange surface irregularities and scratches up to 0.25 mm
Increases the torque capacity of assembled flanges
Unlike cut gaskets, every shape and size is always on hand.
Approval: Australian Gas Association (AGA) Certificate # 2590 Class II rated working pressure 500kPa.
Recommended Primer - LOCTITE 7649 (Refer to TDS)
TECHNICAL SPECIFICATIONS
Term / Description
Mfr No. 45082
Application Gasketing & Sealing
Strength Medium
Appearance Opaque Pink Paste
Cure Anaerobic
Temperature Range -54C to +200C
Fixture Time 25min
Gap Fill 0.25mm
Shear Strength 725psi
Viscosity High
High temperature resistant flange gasket
Recommended for rigid metal flanges
Adapts to flange surface irregularities and scratches up to 0.25 mm
Increases the torque capacity of assembled flanges
Unlike cut gaskets, every shape and size is always on hand.
Approval: Australian Gas Association (AGA) Certificate # 2590 Class II rated working pressure 500kPa.
Recommended Primer - LOCTITE 7649 (Refer to TDS)
TECHNICAL SPECIFICATIONS
Term / Description
Mfr No. 45082
Application Gasketing & Sealing
Strength Medium
Appearance Opaque Pink Paste
Cure Anaerobic
Temperature Range -54C to +200C
Fixture Time 25min
Gap Fill 0.25mm
Shear Strength 725psi
Viscosity High
